Qualidade de acordo com os padrões alemães
Da primeira amostra à produção em série: Os nossos produtos passam por controlos de qualidade rigorosos e abrangentes, geridos e implementados na Alemanha. Desta forma, garantimos o cumprimento de todas as especificações, diretivas e normas e satisfazemos as mais elevadas exigências.
Destaques

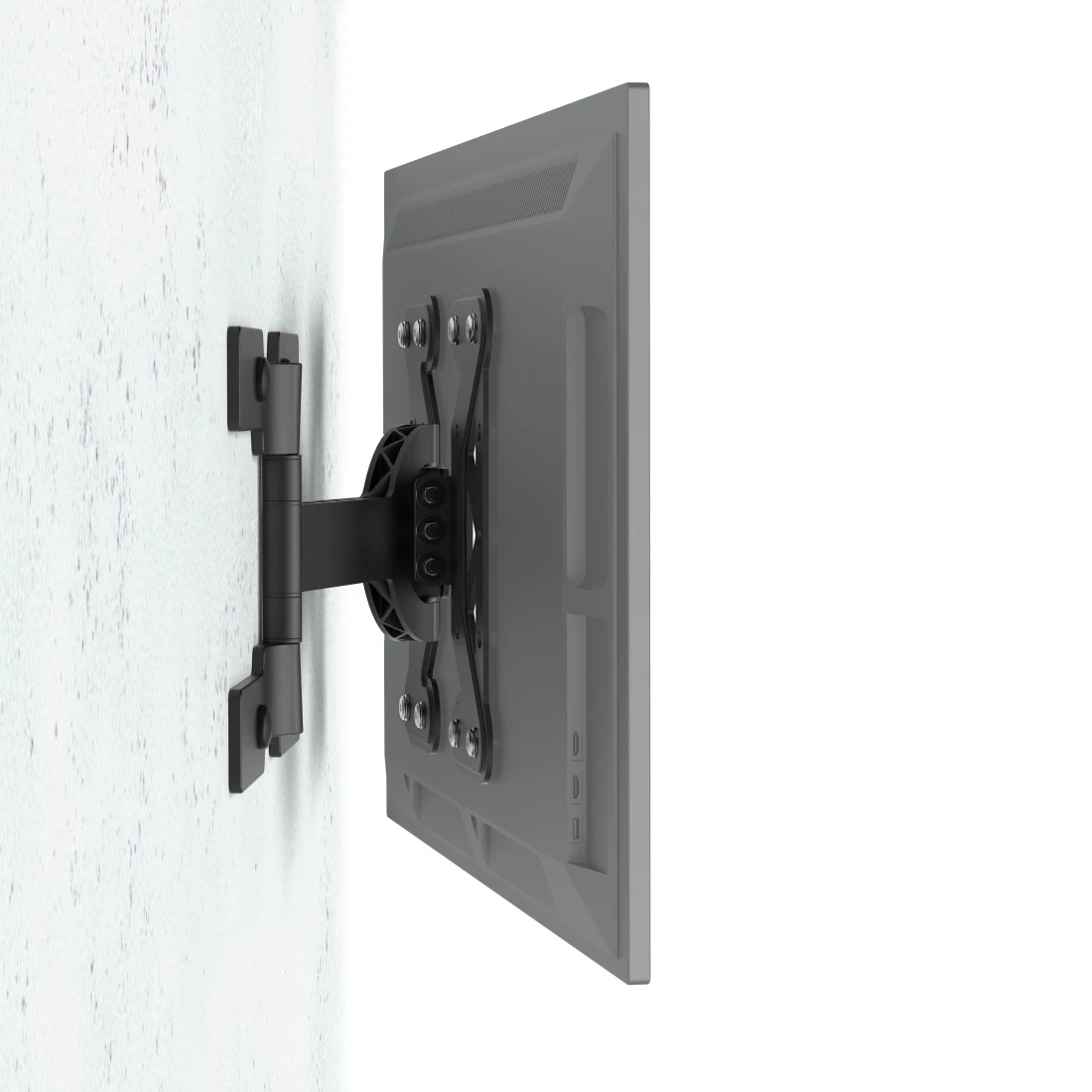

Ultra-flat profile
Suporte de parede com um perfil extremamente delgado e, simultaneamente, mobilidade total em todas as direções
Cable manager
O organizador de cabos possibilita organização e o alívio de tracção necessário
Sistema Easy Fix
Sempre posicionado de forma fácil e rápida: Com apenas um movimento, pode ajustar o televisor espontaneamente como pretender – sem qualquer ferramenta
Rebalancing
Se, depois de montado, o suporte de parede para TV ficar ligeiramente inclinado, a posição da TV pode ser posteriormente corrigida alguns graus para ficar na horizontal
Drilling template for marking the drill holes
A matriz de perfuração permite assinalar com facilidade os orifícios a serem abertos, sem ter de encostar o suporte à parede
-
Ficha Técnica
Design (Colour, Pattern, Motif, Series) Cor Black Variante Black Quality Qualidade Ultraslim Propriedades Físicas Carga Máx. 33 kg Hole Size Attachment up to M8 Tilt +/- 3 / 12 ° Material Die-cast Aluminium, Metal Maximum swivel range 181 ° Modelo OLED TV number of joints 3 Projection maximum 22 cm Projection minimum 2,5 cm Rotation 6 ° Dimensões & Peso Altura Exterior 24 cm Dimensões do Monitor 48 cm (19"), 50,8 cm (20"), 54.61 cm (21.5"), 56 cm (22"), 58 cm (23"), 61 cm (24"), 66 cm (26"), 69 cm (27"), 71 cm (28"), 74 cm (29"), 76 cm (30"), 79 cm (31"), 81 cm (32"), 84 cm (33"), 86 cm (34"), 89 cm (35"), 91 cm (36"), 94 cm (37"), 97 cm (38"), 99 cm (39"), 103 cm (40"), 104 cm (41"), 108 cm (42"), 110 cm (43"), 112 cm (44"), 115 cm (45"), 118 cm (46"), 120 cm (47"), 122 cm (48") Largura Exterior 24.3 cm Mounting Plate (Length) 20 cm Mounting Plate (Width) 24 cm VESA 100 x 100, 100 x 150, 100 x 200, 200 x 100, 200 x 200 VESA (from-to) 100x100 - 200X200 Field of Application Apropriado para TV Recommended Maximum Screen Size 122 cm (48") Recommended Minimum Screen Size 48 cm (19") Tamanho de Ecrã Recomendado 48 - 122 cm (19"-48") Variante Pivoted -
Manufacturer information
Hama GmbH & Co KG, 86652, Monheim, https://hama.com
-
Garantia
Hama GmbH & Co KG provides the following manufacturer’s warranty on the workmanship and materials used for the product 00118062 Suporte TV WB "ultraslim" FM 1-arm 200: 3 Anos de Garantia
This warranty begins on the date of purchase of this Hama product and is valid throughout the EU.
If material or manufacturing faults that are considered to constitute a warranty claim occur during the warranty period, Hama GmbH & Co KG will resolve the fault free of charge by repairing the goods or replacing them a product that Hama GmbH & Co KG deems to be equivalent.
The warranty we provide is in addition to the statutory rights to a warranty free of charge, for which any claim must be directed to the seller of your product.
Likewise, any statutory rights you have to a warranty free of charge from us remain unaffected by this warranty promise.
In the event of a warranty claim, you must send the Hama product along with proof of purchase in original form with postage and freight costs paid to the following address:
Hama GmbH & Co KG
Dresdner Str. 9
86653 Monheim
Germany
We would ask you to appreciate that Hama GmbH & Co KG may reject the
warranty claim if the proof of purchase is not provided, because this proof is used to calculate the warranty period.
The warranty is valid only for non-commercial users of our product.
In the case of defects caused by force or improper use, as well as in the case of repairs or actions by the purchasing party or third parties without the prior written consent of Hama GmbH & Co KG, the warranty becomes null and void.
Damages that are not covered by this warranty may be fixed against the cost of the repairs, either by the dealer that sold you the product or by Hama GmbH & Co KG.
Hama GmbH & Co KG, Dresdner Str. 9, 86653 Monheim, 2022
FAQs
-
Can I also attach my curved TV to the wall bracket?
Yes, the spacers included allow even TVs with a curved back to be hung effortlessly
-
How do I change the position of the flat screen TV using the rotation setting?
Loosen the corresponding fastening screws and set the desired rotation. Then tighten the screw connection only so far that you can still adjust the TV by hand - i.e. do not tighten it completely. After releasing, the flat screen TV should then remain in the position you selected. This ensures that you can make minor changes to the position of the TV set at any time without using tools.
