Hama TILT "Ultraslim" TV Wall Bracket, 6
Super flat, simply reliable and practically invisible: with its innovative design, the extra-flat Ultraslim TV wall bracket sets the scene for your flat-screen like a painting and reduces the distance from the wall to an absolute minimum. This is pure aesthetics for your living room!
Is suitable for
Destaques
Perfil extremamente fino com 2 cm
Ultra fino e discreto: com apenas 2 cm de distância à parede, o suporte para TV integra-se discretamente na decoração da casa, poupa espaço e dá-lhe toda a liberdade necessária para decorar interiormente o seu espaço
Inclinação gradual até -15°
Para o melhor ângulo de visão, inclusivamente do sofá e da cama: o suporte de parede para TV é gradualmente inclinável até -12° e adapta-se às suas necessidades individuais – sentado ou deitado
Até 90" e 80 kg
Extremamente resistente: o formato estável com braço duplo permite uma fixação segura de televisores com até 80 kg de peso e uma diagonal de ecrã de até 90 polegadas
Ideal para televisores superfinos
Formato inovador: o design do suporte de parede foi concebido para televisores ultrafinos e adequa-se na perfeição para ecrãs especialmente planos, como por ex., os televisores OLED
Fixação de televisor com a norma VESA
Fixação segura de televisores com a norma VESA de 50x50 a 600x400
2 regulações em altura
A melhor visibilidade, graças às 2 regulações em altura: depois de montar o suporte de parede, a altura do televisor pode ser regulada no suporte em 2 níveis diferentes
Simple unlocking
Basta um puxão no cordão de desbloqueio para o mecanismo se soltar e permitir que o televisor seja removido
Intelligent alignment
Após a sua instalação, o suporte pode ser alinhado horizontalmente na parede com a ajuda dos furos longitudinais
Includes mounting material
Tudo incluído: Arregace as mangas com os diversos acessórios de montagem, incl. buchas Fischer de alta qualidade
Including spirit level
Com nível de bolha de ar para uma montagem simples e rápida
Tested quality
Jogue pelo seguro com a nossa segurança comprovada e 10 anos de garantia: exigentes testes de carga, estabilidade e funcionamento garantem elevados padrões de qualidade
| Cor | Black |
| Variante | Transparente/Azul |
| Qualidade | Ultraslim |
| Carga Máx. | 80 kg |
| Hole Size Attachment | up to M8 |
| Tilt +/- | 0 / 15 ° |
| Material | Steel |
| Modelo | TV |
| number of joints | 0 |
| Projection maximum | 2 cm |
| Projection minimum | 2 cm |
| Rotation | 3 ° |
| Special Feature | Spirit level |
| Altura Exterior | 46 cm |
| Dimensões do Monitor | 94 cm (37"), 97 cm (38"), 99 cm (39"), 103 cm (40"), 104 cm (41"), 108 cm (42"), 110 cm (43"), 112 cm (44"), 115 cm (45"), 118 cm (46"), 120 cm (47"), 122 cm (48"), 123 cm (49"), 128 cm (50"), 129 cm (51"), 133 cm (52"), 137 cm (54"), 141 cm (55"), 142 cm (56"), 146 cm (57"), 148 cm (58"), 152 cm (60"), 156 cm (61"), 162 cm (63"), 163 cm (64"), 166 cm (65"), 179 cm (70"), 181 cm (71"), 191 cm (75"), 195 cm (77"), 198 cm (78"), 200 cm (79"), 203 cm (80"), 208 cm (82"), 213 cm (84"), 216 cm (85"), 218.4 cm (86"), 223,52 cm (88"), 228,6 cm (90") |
| Distância da parade | 2 cm |
| Largura Exterior | 67,4 cm |
| Mounting Plate (Length) | 67,4 cm |
| Mounting Plate (Width) | 5 cm |
| VESA | 50 x 50, 75 x 75, 100 x 100, 100 x 200, 200 x 100, 200 x 200, 200 x 300, 200 x 400, 300 x 100, 300 x 200, 300 x 300, 300 x 400, 400 x 100, 400 x 200, 400 x 300, 400 x 400, 600 x 100, 600 x 200, 600 x 300, 600 x 400 |
| VESA (from-to) | 50x50 - 600x400 |
| Apropriado para | TV |
| Recommended Maximum Screen Size | 228,6 cm (90") |
| Recommended Minimum Screen Size | 94 cm (37") |
| Tamanho de Ecrã Recomendado | 94 - 229 cm (37" - 90") |
| Variante | Inclinable |
- The super-flat TV wall bracket combines practical and aesthetic requirements, even for large TVs: stylish and unobtrusive format for that home cinema feeling from every viewing angle, perfectly suitable for ultra-flat TVs with a screen diagonal from 94 to 229 cm (37" to 90")
- Virtually no distance from the TV: the ultra-flat TV wall bracket has an extra-small wall clearance of just 20 mm

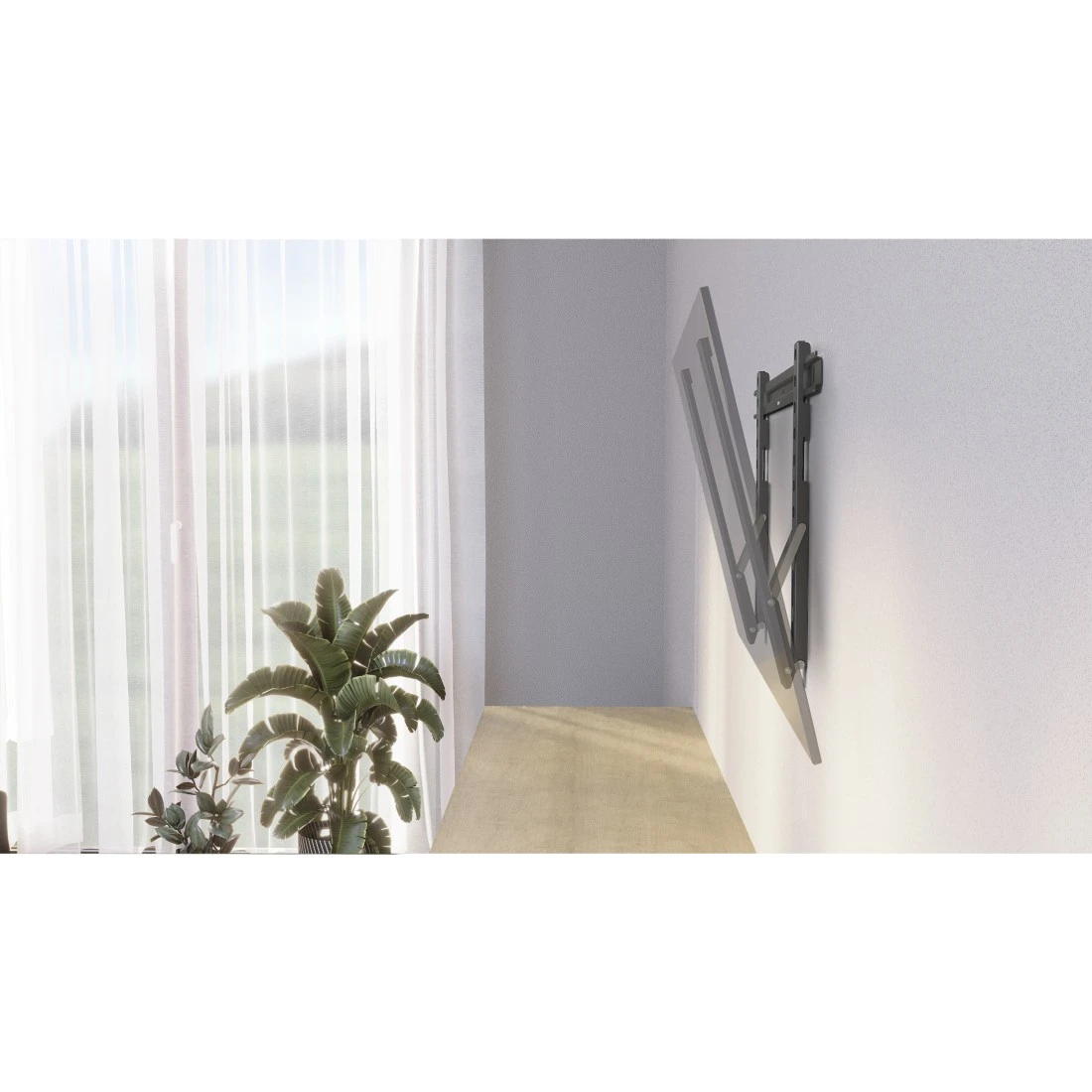

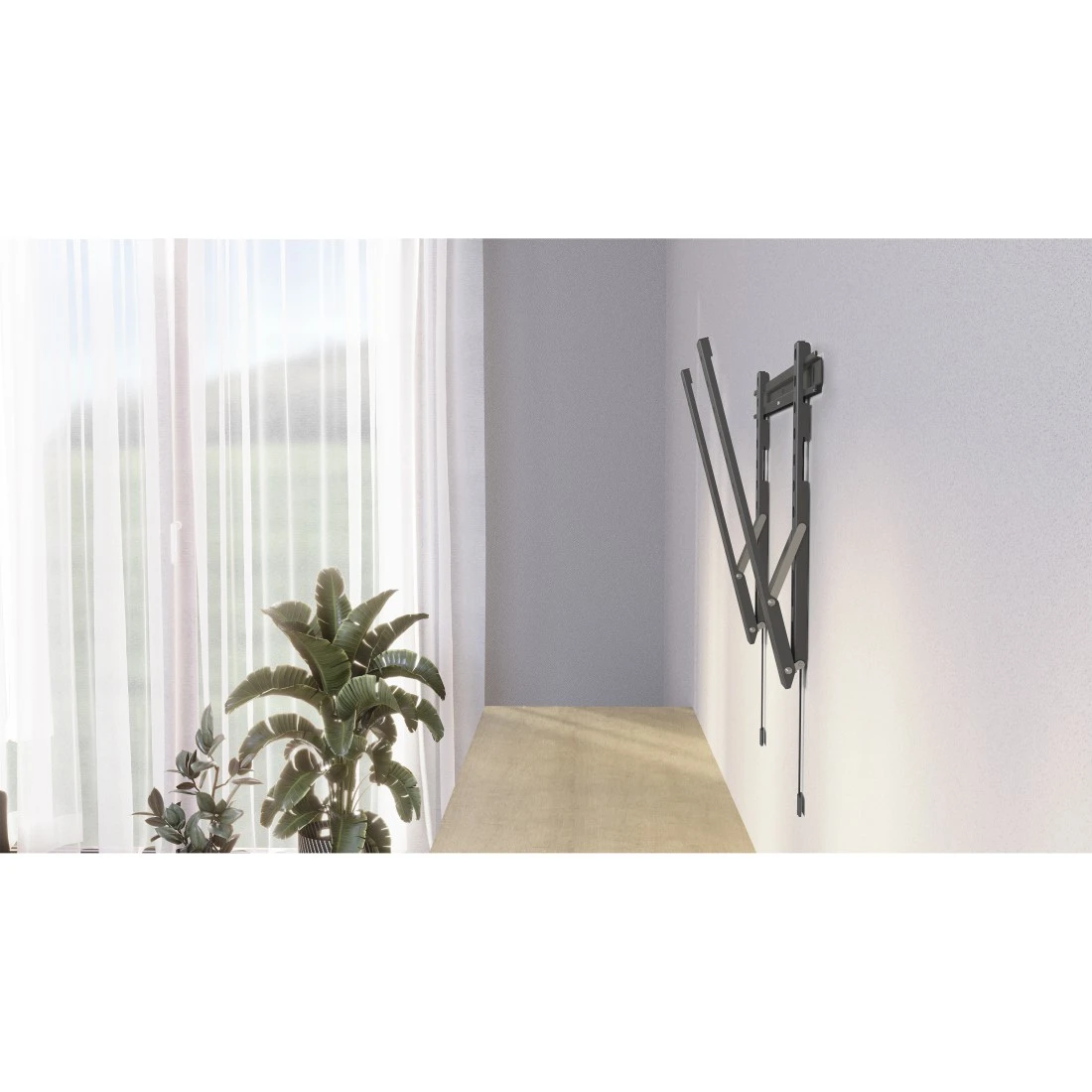

- Always the perfect viewing angle: the TV bracket can easily be tilted forward and always guarantees the best view of the action, even if you're comfortably watching from a sofa or bed
- Minimalist, stylish and space-saving for optimised positioning of the flat-screen in any room, and can also be mounted higher on the wall thanks to the flexible tilt angle

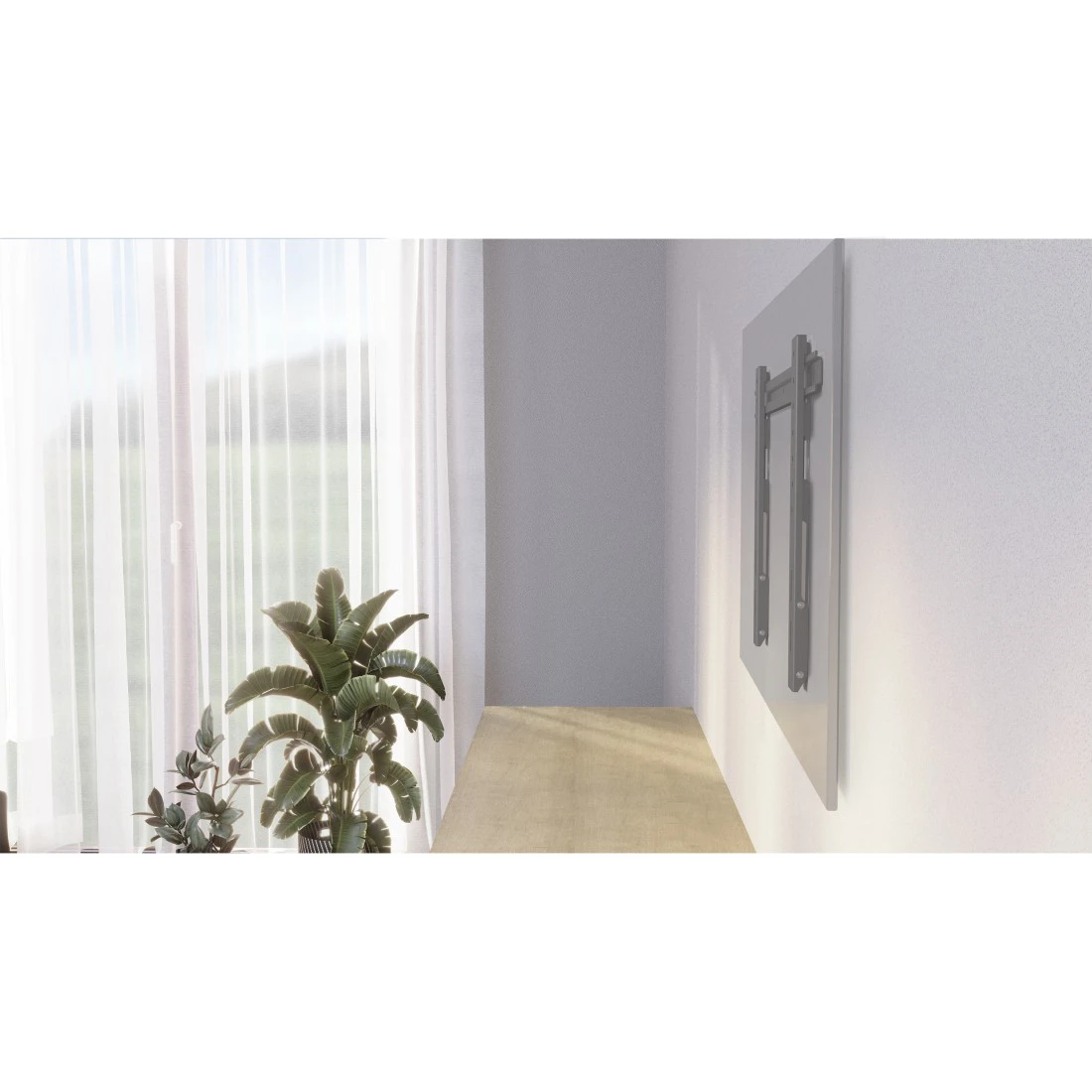

- No gaps: thanks to the innovative, ultra-slim design, the extra-flat wall bracket is virtually invisible when folded down behind the TV
- Especially suitable for ultra-flat OLED TV sets that appear to hang directly on the wall with the ultra-slim wall bracket
- Sturdy TV bracket made from extra-strong raw material (steel)
- Height adjustable by 103 mm (depending on the screen size and the position of the VESA holes)
- Design developed in Germany
- 1 TV wall bracket
- Installation material incl. Fischer plugs
- 1 spirit level
- 1 installation instructions
In addition to the various installation accessories delivered in the package, we also recommend the following tools: drill, pencil, screwdriver, power screwdriver, measuring tape, open-end spanner, spirit level.
The dowels and screws supplied with this TV wall bracket are only suitable for concrete and solid brick walls. Please check your wall before commencing installation. If the wall is made of any other material, please find suitable plugs and screws from a specialist retailer.
