Suportes de Parede
É acessório de
Hama Suporte TV "Strong" FIX TV Wall Bracket 120"
00118129
For the installation of flat screen TVs with a screen size from 94 to 305 cm (37" to 120")
79,99
EUR
Is suitable for
Qualidade de acordo com os padrões alemães
Da primeira amostra à produção em série: Os nossos produtos passam por controlos de qualidade rigorosos e abrangentes, geridos e implementados na Alemanha. Desta forma, garantimos o cumprimento de todas as especificações, diretivas e normas e satisfazemos as mais elevadas exigências.
Destaques
Extremely resilient up to 100 kg
Extremamente forte: a construção estável permite uma fixação mais segura de televisores com um peso de até 100 kg
Extremely flat profile
O perfil extra fino permite uma instalação moderna e compacta
Including spirit level
Com nível de bolha de ar para uma montagem simples e rápida
| Cor | Black |
| Variante | Black |
| Qualidade | Special |
| Carga Máx. | 100 kg |
| Hole Size Attachment | up to M8 |
| Material | Steel |
| Modelo | TV |
| number of joints | 0 |
| Projection maximum | 2,8 cm |
| Projection minimum | 2,8 cm |
| Special Feature | Spirit level |
| Altura Exterior | 62 cm |
| Dimensões do Monitor | 94 cm (37"), 97 cm (38"), 99 cm (39"), 103 cm (40"), 104 cm (41"), 108 cm (42"), 110 cm (43"), 112 cm (44"), 115 cm (45"), 118 cm (46"), 120 cm (47"), 122 cm (48"), 123 cm (49"), 128 cm (50"), 129 cm (51"), 133 cm (52"), 137 cm (54"), 141 cm (55"), 142 cm (56"), 146 cm (57"), 148 cm (58"), 152 cm (60"), 156 cm (61"), 162 cm (63"), 163 cm (64"), 166 cm (65"), 179 cm (70"), 181 cm (71"), 191 cm (75"), 195 cm (77"), 198 cm (78"), 200 cm (79"), 203 cm (80"), 208 cm (82"), 213 cm (84"), 216 cm (85"), 218.4 cm (86"), 223,52 cm (88"), 228,6 cm (90"), 247,65 cm (97,5"), 248,92 cm (98"), 266,7 cm (105"), 304,8 cm (120") |
| Distância da parade | 2,8 cm |
| Largura Exterior | 117 cm |
| Mounting Plate (Length) | 115,6 cm |
| Mounting Plate (Width) | 20,2 cm |
| VESA | 50 x 50, 100 x 100, 100 x 150, 100 x 200, 200 x 100, 200 x 200, 200 x 300, 200 x 400, 300 x 100, 300 x 200, 300 x 300, 300 x 400, 400 x 100, 400 x 200, 400 x 300, 400 x 400, 500 x 100, 500 x 200, 500 x 300, 500 x 400, 600 x 100, 600 x 200, 600 x 300, 600 x 400, 600 x 500, 600 x 600, 600 x 800, 700 x 400, 700 x 500, 800 x 200, 800 x 300, 800 x 400, 800 x 500, 800 x 600, 800 x 800, 900 x 100, 900 x 200, 900 x 300, 900 x 400, 900 x 500, 900 x 600, 1000 x 100, 1000 x 200, 1000 x 300, 1000 x 400, 1000 x 500, 1000 x 600, 1100 x 100, 1100 x 200, 1100 x 300, 1100 x 400, 1100 x 500, 1100 x 600 |
| VESA (from-to) | 50x50 - 1100x600 |
| Apropriado para | TV |
| Recommended Maximum Screen Size | 304,8 cm (120") |
| Recommended Minimum Screen Size | 94 cm (37") |
| Tamanho de Ecrã Recomendado | 94 - 304,8 cm (37" - 120" ) |
| Variante | Fix |
- For the installation of flat screen TVs with a screen size from 94 to 305 cm (37" to 120")
- Bracket made from extra-strong base material (steel)
- Especially suitable for ultra-flat OLED TVs
- Exceptionally convenient and space-saving for optimal positioning of the flat screen TV in every room
- Suitable for especially large TV sets up to 120"

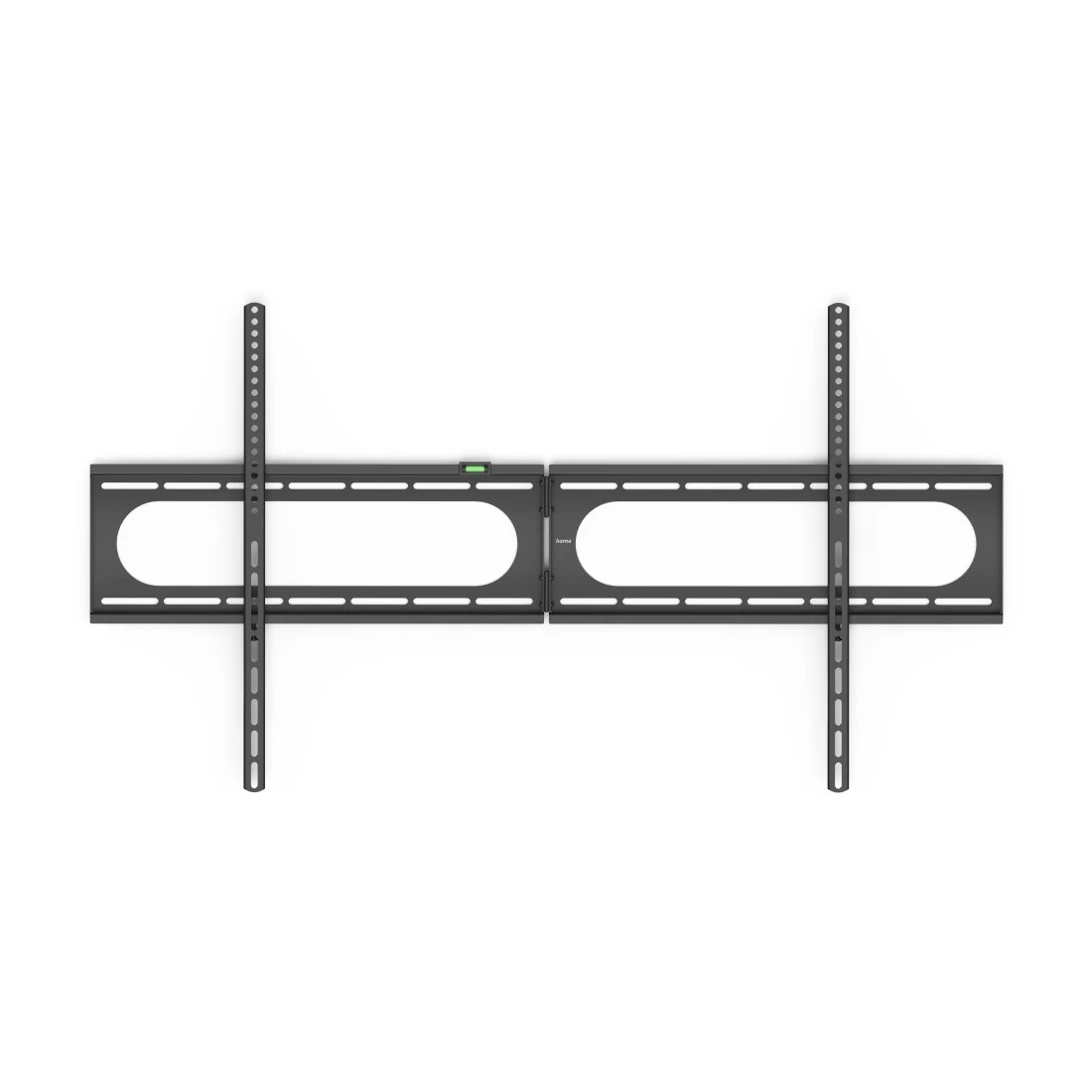

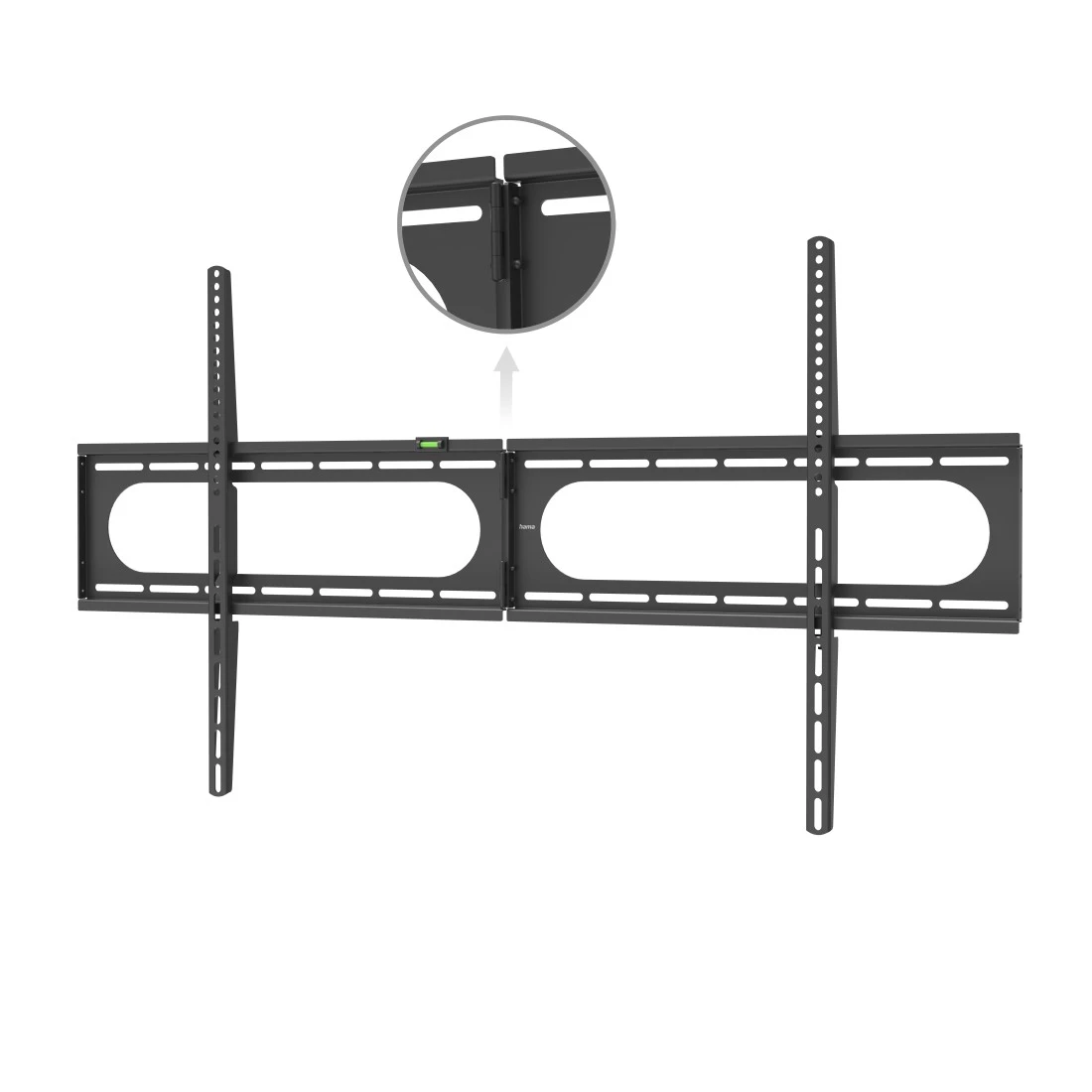

- 1 "Strong" FIX TV wall bracket

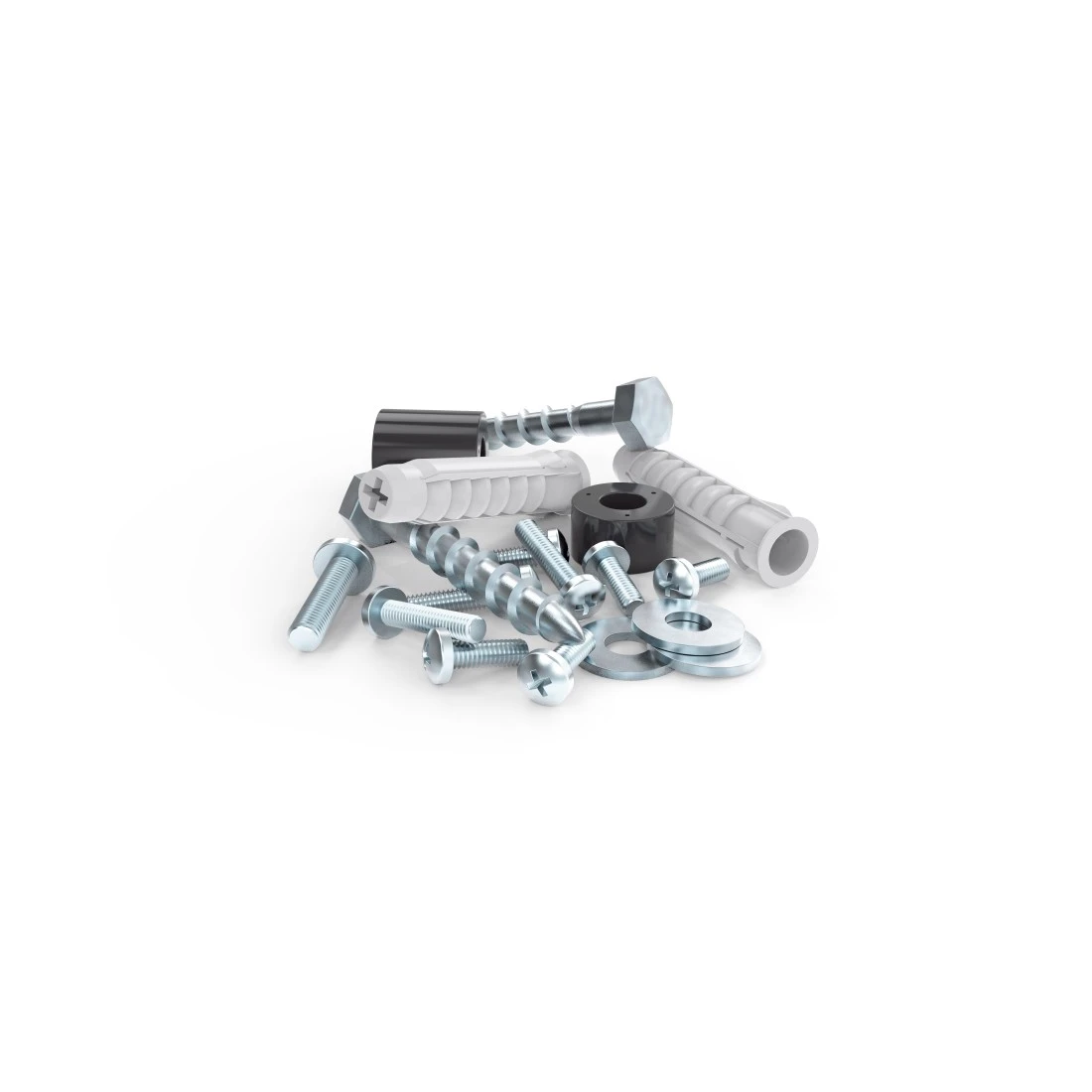

- Installation materials incl. Fischer plugs
- 1 spirit level
- 1 installation instructions
In addition to the various installation accessories delivered in the package, we also recommend the following tools: drill, pencil, screwdriver, power screwdriver, measuring tape, open-end spanner, spirit level.
The dowels and screws supplied with this TV wall bracket are only suitable for concrete and solid brick walls. Please check your wall before commencing installation. If the wall is made of any other material, please find suitable plugs and screws from a specialist retailer.
Hama GmbH & Co KG provides the following manufacturer’s warranty on the workmanship and materials used for the product 00118129 Suporte TV "Strong" FIX TV Wall Bracket 120": 3 Anos de Garantia
This warranty begins on the date of purchase of this Hama product and is valid throughout the EU.
If material or manufacturing faults that are considered to constitute a warranty claim occur during the warranty period, Hama GmbH & Co KG will resolve the fault free of charge by repairing the goods or replacing them a product that Hama GmbH & Co KG deems to be equivalent.
The warranty we provide is in addition to the statutory rights to a warranty free of charge, for which any claim must be directed to the seller of your product.
Likewise, any statutory rights you have to a warranty free of charge from us remain unaffected by this warranty promise.
In the event of a warranty claim, you must send the Hama product along with proof of purchase in original form with postage and freight costs paid to the following address:
Hama GmbH & Co KG
Dresdner Str. 9
86653 Monheim
Germany
We would ask you to appreciate that Hama GmbH & Co KG may reject the
warranty claim if the proof of purchase is not provided, because this proof is used to calculate the warranty period.
The warranty is valid only for non-commercial users of our product.
In the case of defects caused by force or improper use, as well as in the case of repairs or actions by the purchasing party or third parties without the prior written consent of Hama GmbH & Co KG, the warranty becomes null and void.
Damages that are not covered by this warranty may be fixed against the cost of the repairs, either by the dealer that sold you the product or by Hama GmbH & Co KG.
