Hama USB4 Docking Station, 8K, PD140W, 10P
USB-C hub with 10 connections when slots are in short supply (or are to be extended) on a PC, notebook, MacBook or tablet, or if multiple devices are to be connected / disconnected centrally via a single plug
Is suitable for
Destaques
Super speed Plus data transfer
Transmissão de dados Super Speed Plus até 10 Gbit/s
USB-C charging + data
A tomada USB C suporta tanto transferência de dados, quanto função de carregamento (USB PD)
Ultra HD – 8K
Para uma qualidade de cinema Ultra HD perfeita, de alta resolução, com 7680x4320 (8K) píxels
Multi-stream transport for additional monitors
ComMST (Multi Stream Transport) pode ligar, por exemplo, três monitores adicionais ao Notebook e utilizar simultaneamente os quatro ecrãs, cada um a apresentar um conteúdo diferente
Aluminium surface
Caixa em alumínio robusta e de alta qualidade com um visual requintado
Greater distance between sockets
A ampla distância entre tomadas permite afácil ligação de fichas/dongles USB de grandes dimensões
Optimum kink protection
Proteção otimizada contra emaranhamento graças a materiais flexíveis, para evitar danos nos cabos
Excellent transmission quality
Materiais e processamento da mais alta qualidade garantem uma qualidade de transferência excelente
| Cor | Cinzento |
| Linha | Essential Line |
| Variante | Transparente/Azul |
| Qualidade | Essencial |
| Cabo de Ligação | Amovível |
| Connection Details | 1x DisplayPort / DP 1.4 / max. 8K@30Hz, 1x HDMI(TM) / High Speed HDMI(TM) / max. 8K@30Hz, 1x LAN/Ethernet / max. 2.5 Gbit/s, 1x USB-C / Power-Delivery / max. 5-28V - 5 A - 140 W, 1x USB-C / USB4 / DP AltMode 8K@30Hz / Data max 10 Gbit/s, 1x USB-C / USB 3.2 Gen2 / max. 10 Gbit/s, 2x USB-A / USB 2.0 / max. 480 Mbit/s, 2x USB-A / USB 3.2 Gen2 / max. 10 Gbit/s |
| Ligação | USB-C-Connector |
| USB Standard | USB4 40 Gbit/s |
| Desempenho Máx. da Ligação | 141 W |
| Resolução Máx. | 8K (7680 x 4320) |
| Tec. de Carregamento | Power Delivery |
| Velocidade da Rede | 10/100/1000/2500 Mbps |
| Quantidade de Ligações | 10 |
| Tipo | USB-C Docking-Station |
| Altura (Corpo) | 2 cm |
| Comprimento do Cabo | 0,5 m |
| Largura (Corpo) | 16.4 cm |
| Profundidade (Corpo) | 6,5 cm |
| Alimentação | USB-Connection |
- USB-C hub with 10 connections when slots are in short supply (or are to be extended) on a PC, notebook, MacBook or tablet, or if multiple devices are to be connected / disconnected centrally via a single plug
- Connection to the notebook via USB-4 connection - Enhanced Super Speed Plus data transfer at up to 40 Gbit/s
- Sockets on the front allow the easy and convenient connection of USB devices
- Supports use in a horizontal and vertical position

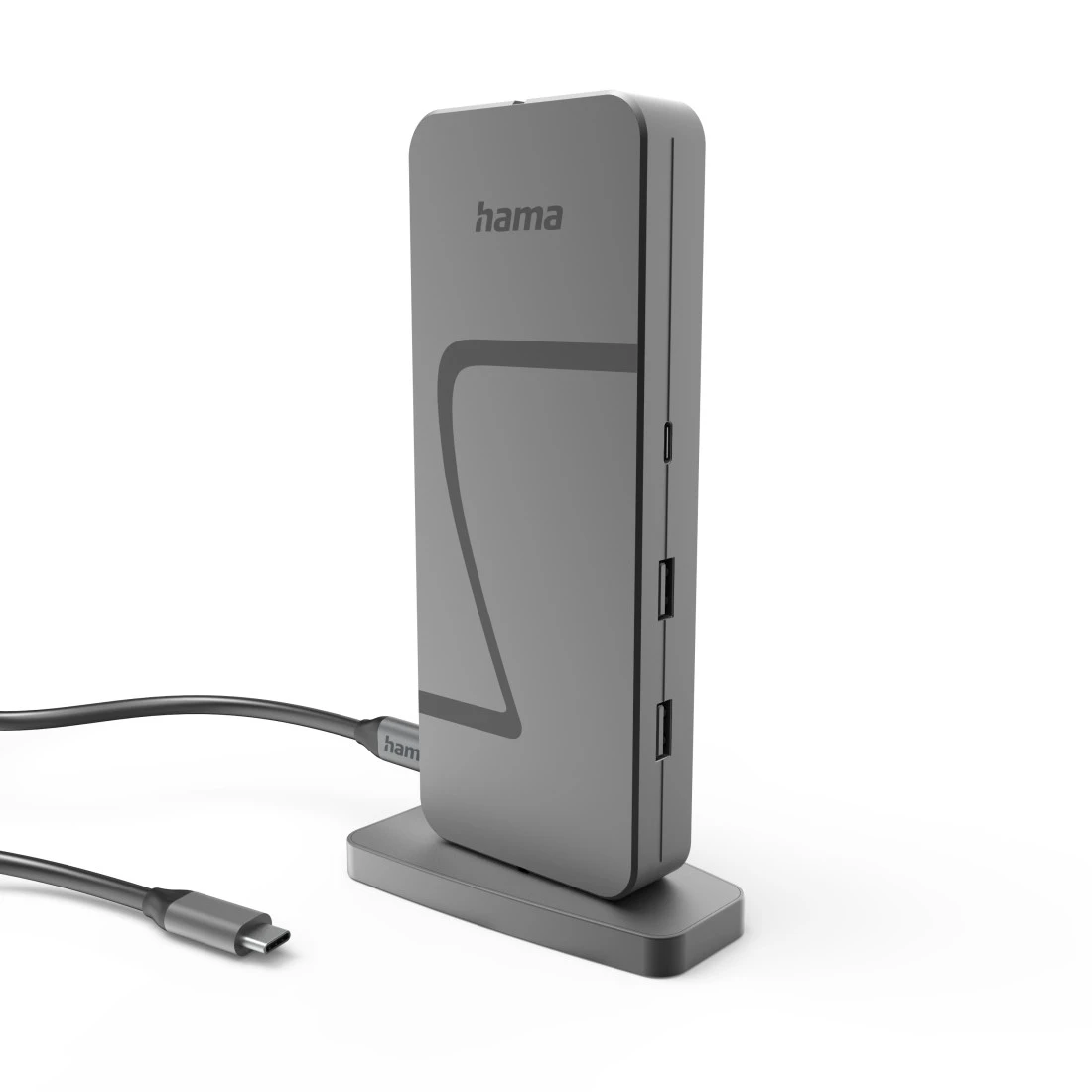

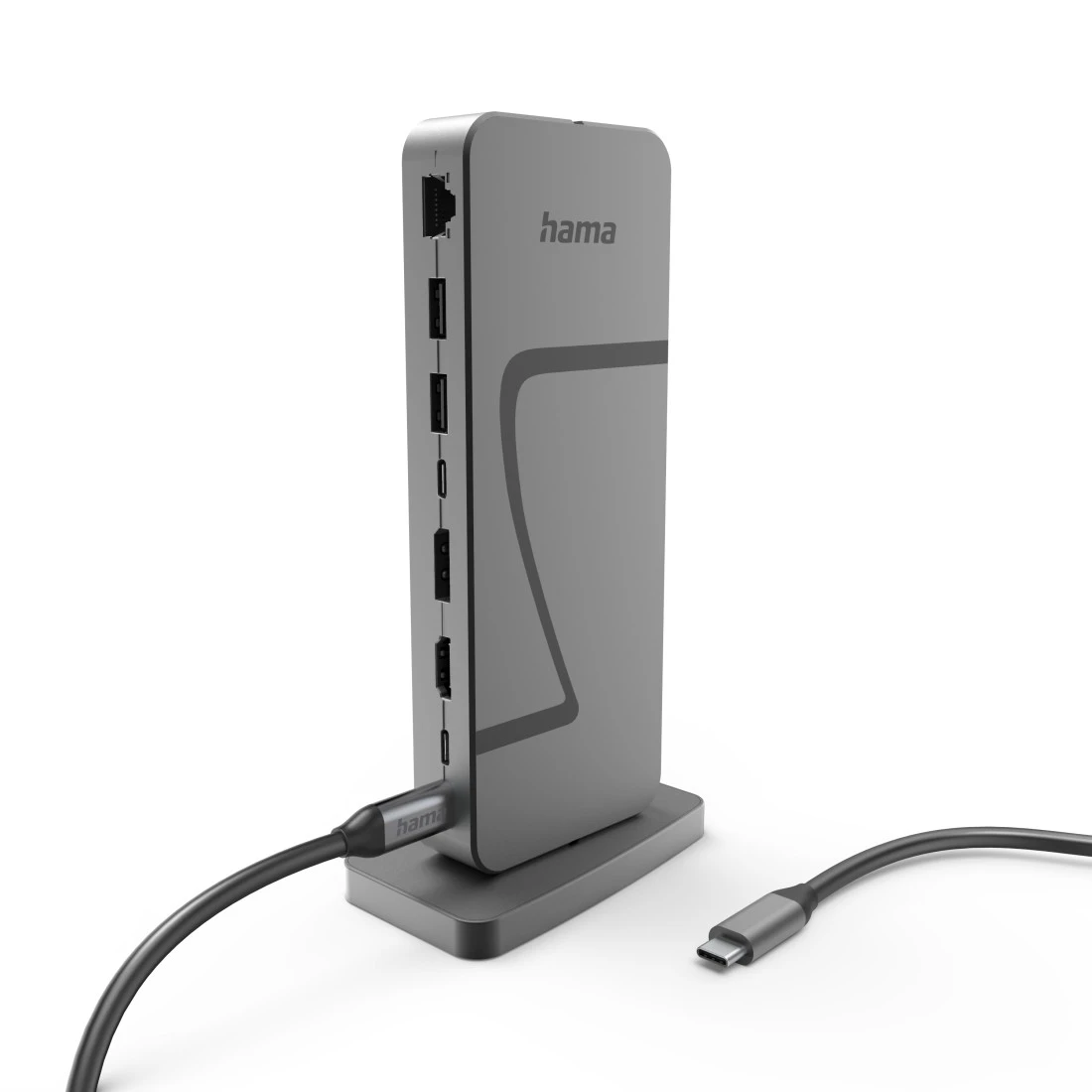

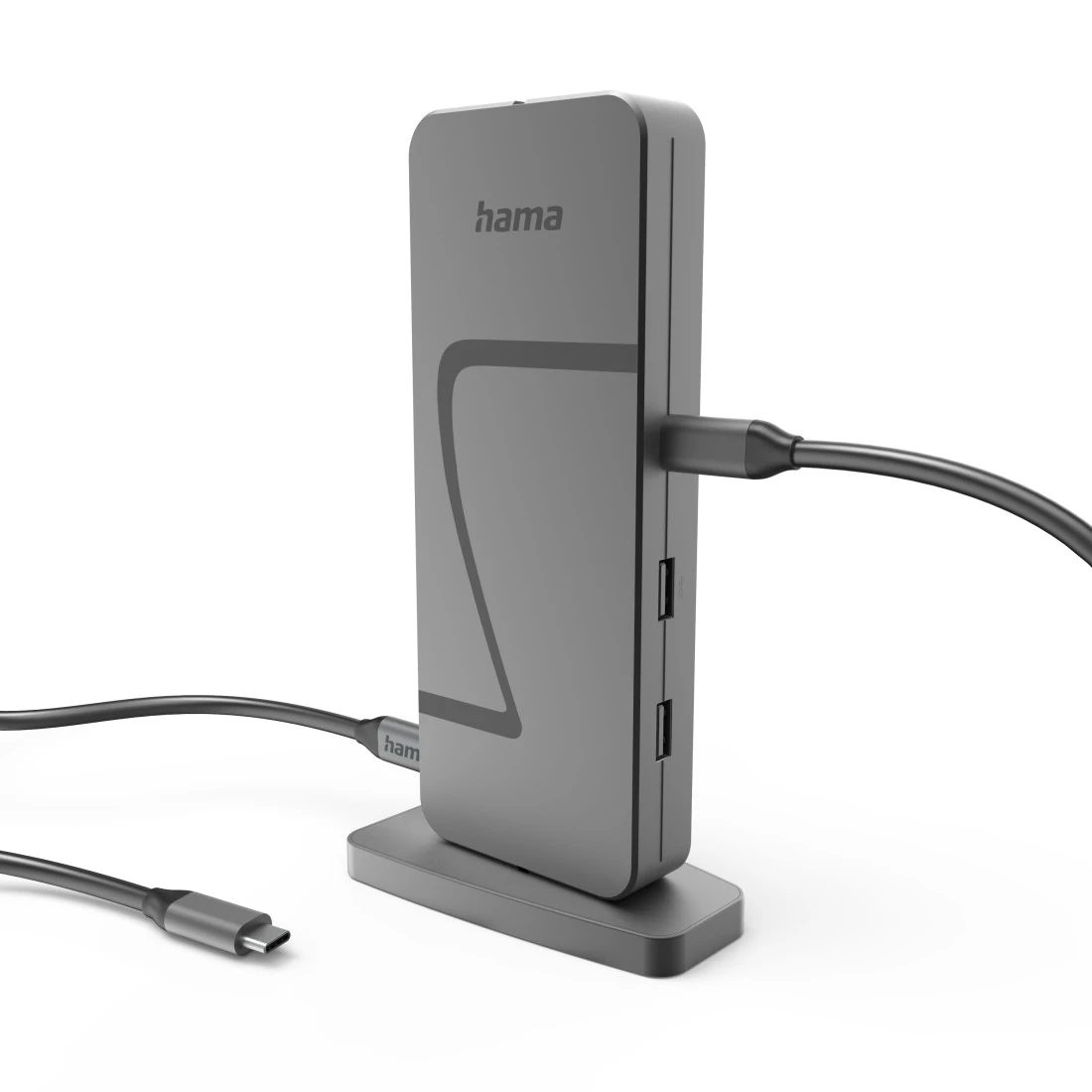

- Stable base for secure, space-saving and vertical / perpendicular positioning
- Rubberised feet for a secure stand without slipping
- Plug & Play, no manual software / driver installation required
- Compatible with Thunderbolt 3/4/5 (lightning symbol)
- Power supply via USB

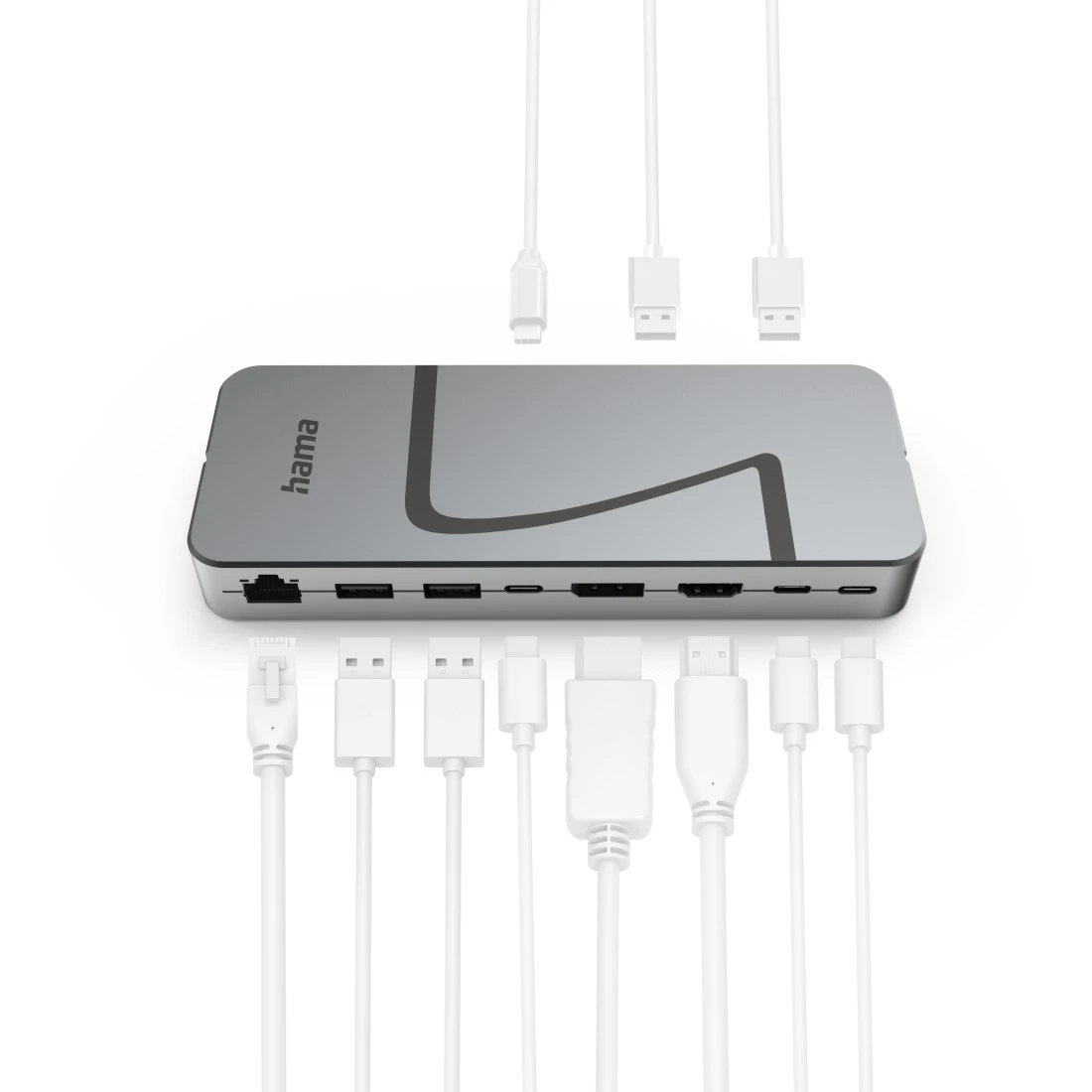

Connections: - 4 x USB-A: for e.g. external hard drive, USB stick, mouse, keyboard, printer
- 1 x USB-C data: for e.g. external hard drive, USB stick, mouse, keyboard, printer
- 1 x USB-C power: for e.g. PD charger, PD power supply unit, PD power pack
- 1 x USB-C display + data: for e.g. monitor, TV, projector, external hard drive, USB stick
- 1 x HDMI™: for connection to an e.g. monitor, TV or projector
- 1 x DisplayPort: for connection to an e.g. monitor, TV or projector
- 1 x LAN/Ethernet: for e.g. cabled Internet / network connections
- 1 “Connect2Office Speed” USB4 docking station

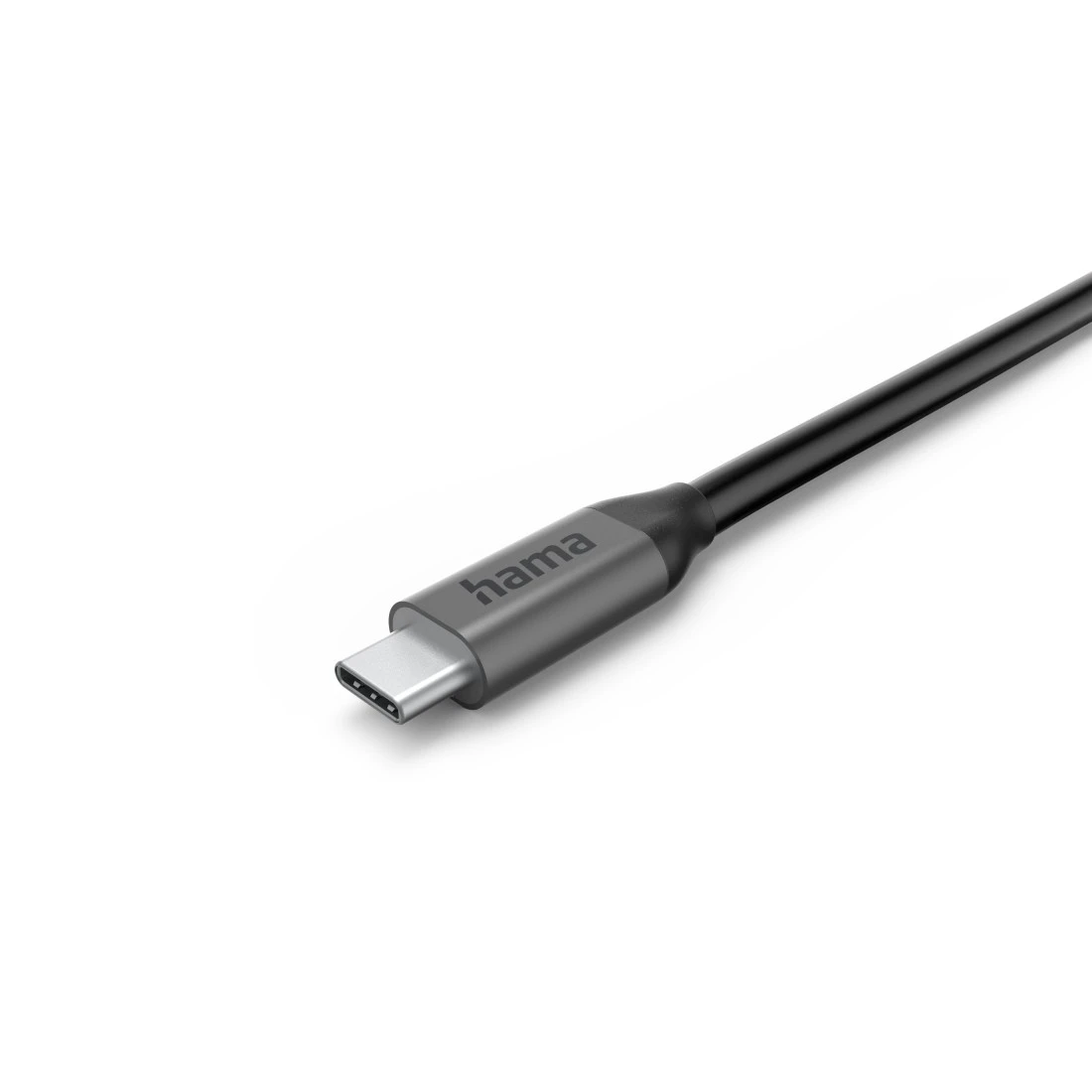

- 1 USB-C cable
- 1 holder
- 1 operating manual
- Operating system: Windows 11/10 and Mac OS 10.8 upwards
To use the charging function over USB-C, the device must support USB Power Delivery (USB PD) or Thunderbolt 3/4/5.
To use the monitor function over HDMI™ or DisplayPort, the device must support DisplayPort Alternate Mode (DP Alt Mode), Thunderbolt 3/4/5 or USB4.
The MST function over HDMI™ or DisplayPort works only in connection with current Microsoft Windows operating systems.
We recommend using a USB PD-compatible power supply unit that is powerful enough to accommodate the connected laptop. For devices with a power consumption of 65 Watt, for example, a power supply unit with an output power of at least 90 to 100 Watts is ideal.
