Destaques
Garantia de 10 anos
Garantia de 10 anos: uma promessa de garantia em termos de durabilidade que vai muito além da garantia prevista por lei
Qualidade comprovada
Jogue pelo seguro com a nossa segurança comprovada: exigentes testes de carga, estabilidade e funcionamento garantem elevados padrões de qualidade

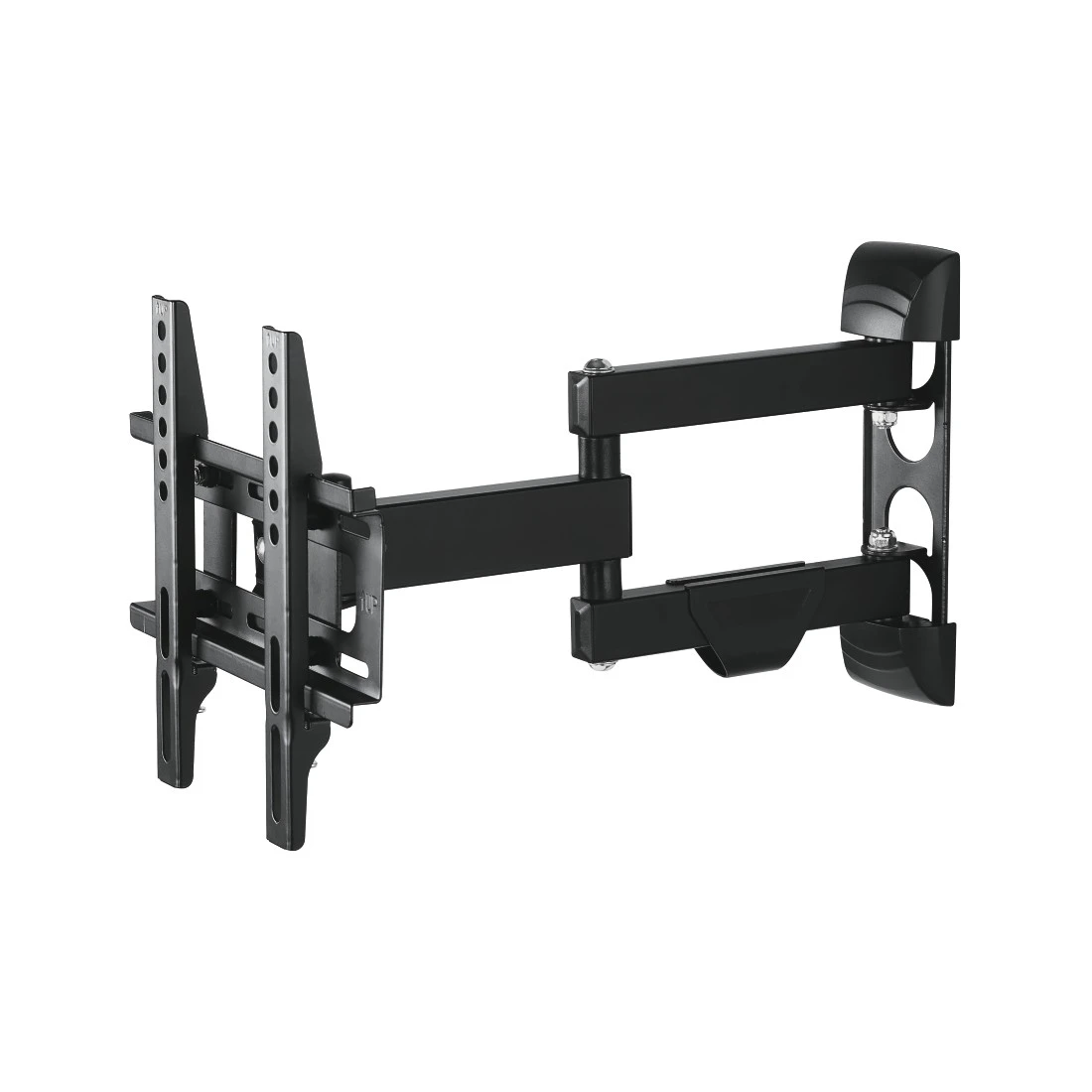

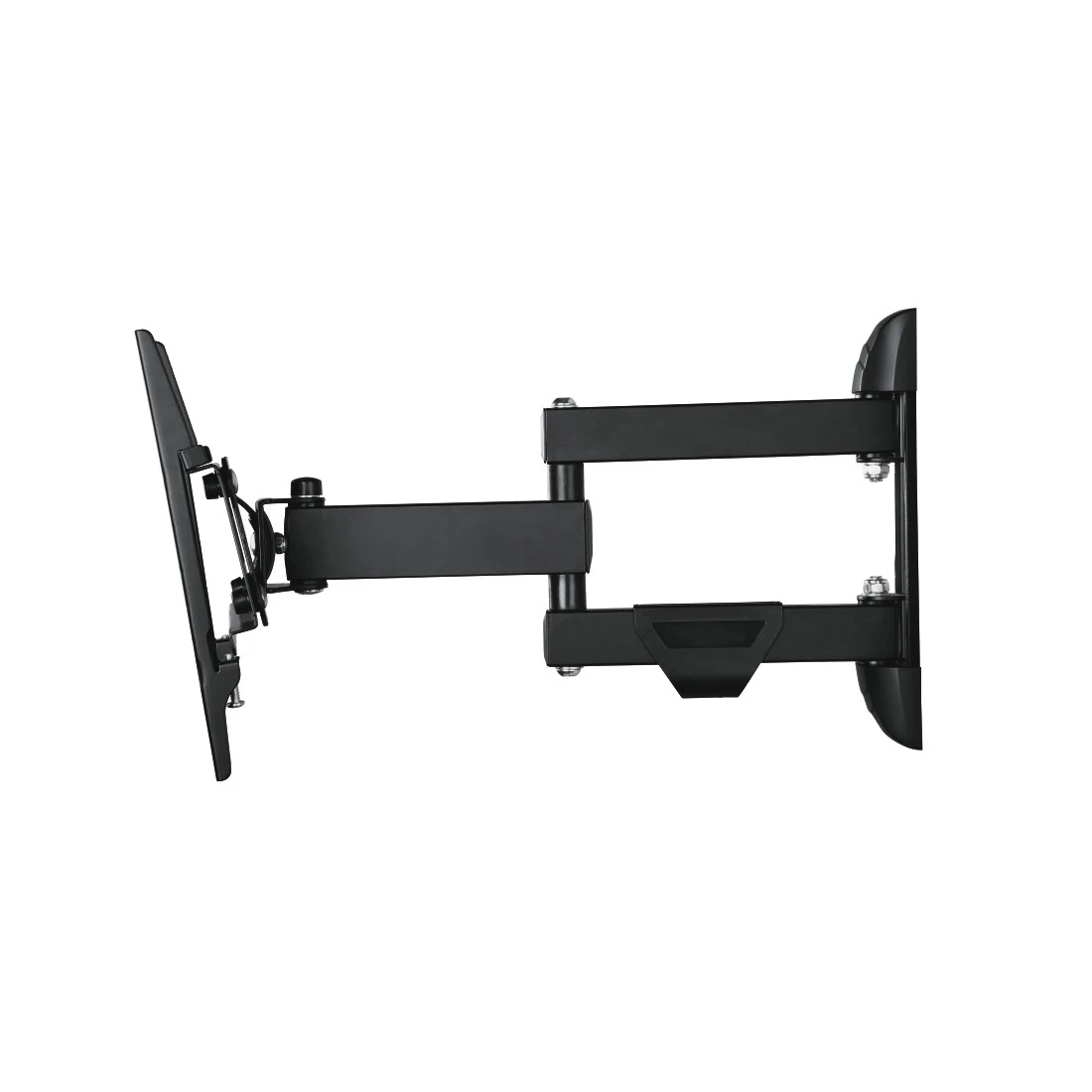

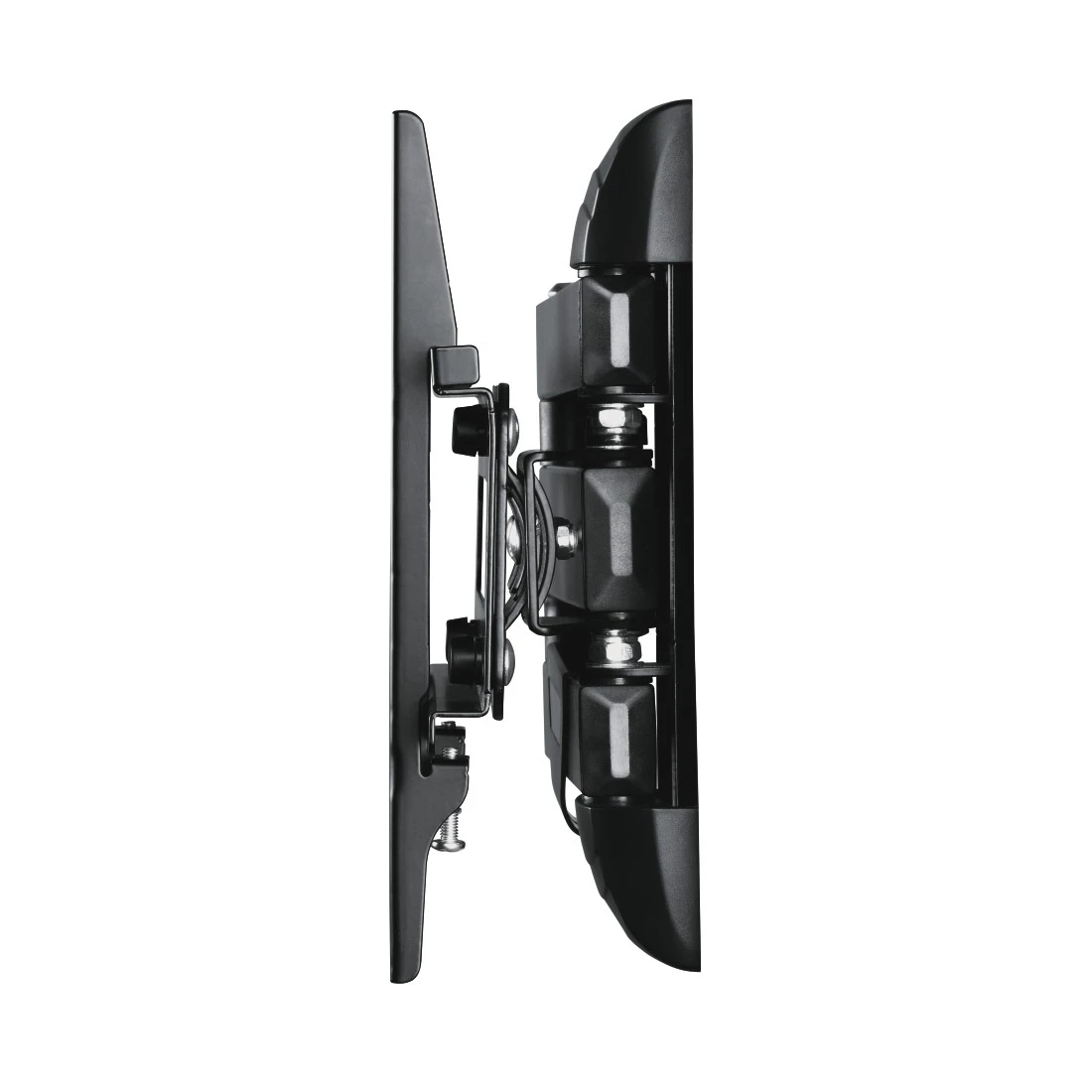

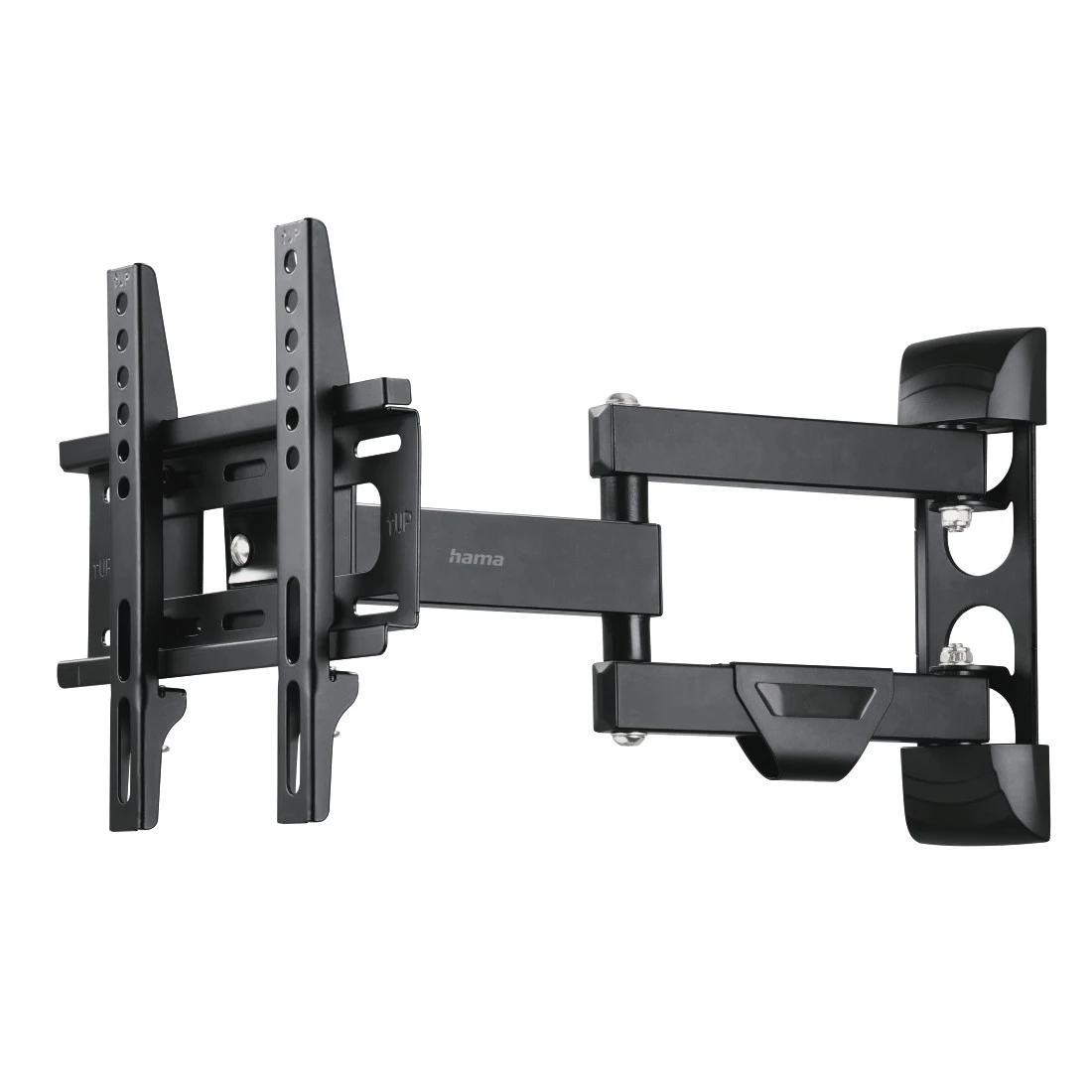

Fully mobile TV bracket
Para o melhor ângulo de visão: Este suporte para televisor adapta-se às suas necessidades individuais – é articulável, inclinável e extraível -, para o melhor Home Entertainment
Sistema Easy Fix
Sempre posicionado de forma fácil e rápida: Com apenas um movimento, pode ajustar o televisor espontaneamente como pretender – sem qualquer ferramenta
Rebalancing
Se, depois de montado, o suporte de parede para TV ficar ligeiramente inclinado, a posição da TV pode ser posteriormente corrigida alguns graus para ficar na horizontal

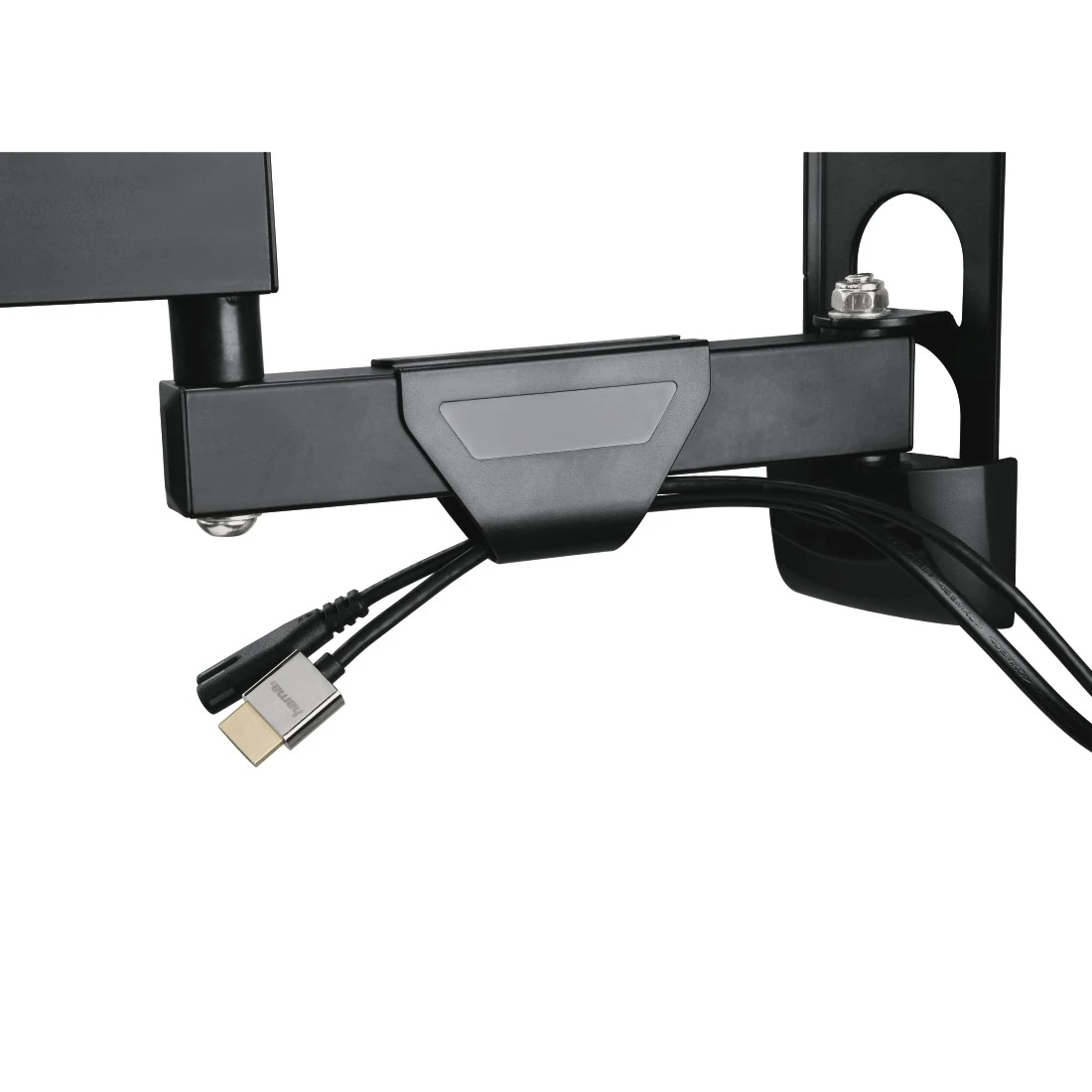

Cable manager
O organizador de cabos possibilita organização e o alívio de tracção necessário
Includes mounting material
Tudo incluído: Arregace as mangas com os diversos acessórios de montagem, incl. buchas Fischer de alta qualidade
FSC
Certificação FSC: o papel, o cartão e o papelão da nossa embalagem são provenientes de práticas sustentáveis de gestão florestal – desta forma, fazemos uma utilização eficiente dos recursos tendo a madeira como matéria-prima
Sem plástico
Embalagem sem culpa: a nossa embalagem é 100 % isenta de plástico – deste modo, reduzimos o lixo plástico e melhoramos a nossa capacidade de reciclar
-
Ficha Técnica
Design (Colour, Pattern, Motif, Series) Cor Black Variante Black Propriedades Físicas Carga Máx. 33 kg Função Adicional Cablemanager, Spirit level Hole Size Attachment up to M8 Inclinação - 12 ° Material Steel Maximum swivel range 181 ° Modelo TV number of joints 3 Projection maximum 38,8 cm Projection minimum 7,9 cm Rotation 3 ° Dimensões & Peso Altura Exterior 23 cm Dimensões do Monitor 48 cm (19"), 50,8 cm (20"), 56 cm (22"), 58 cm (23"), 61 cm (24"), 66 cm (26"), 71 cm (28"), 74 cm (29"), 76 cm (30"), 81 cm (32"), 84 cm (33"), 86 cm (34"), 89 cm (35"), 91 cm (36"), 94 cm (37"), 97 cm (38"), 99 cm (39"), 103 cm (40"), 104 cm (41"), 108 cm (42"), 110 cm (43"), 112 cm (44"), 115 cm (45"), 118 cm (46"), 120 cm (47"), 122 cm (48") Largura Exterior 24,5 cm Mounting Plate (Length) [23.4] cm Mounting Plate (Width) 7,2 cm VESA 50 x 50, 75 x 100, 75 x 75, 100 x 100, 100 x 150, 100 x 200, 150 x 75, 200 x 100, 200 x 200 VESA (from-to) 50x50 - 200x200 Field of Application Apropriado para TV Área de Aplicação Private Recommended Maximum Screen Size 122 cm (48") Recommended Minimum Screen Size 48 cm (19") Tamanho de Ecrã Recomendado 48 - 122 cm (19"-48") Variante Inclinable/Pivoted -
Manufacturer information
Hama GmbH & Co KG, 86652, Monheim, https://hama.com
-
Garantia
Hama GmbH & Co KG provides the following manufacturer’s warranty on the workmanship and materials used for the product 00220840 TV-WB, 122 cm (48"), 25 kg: 10 Anos de Garantia
This warranty begins on the date of purchase of this Hama product and is valid throughout the EU.
If material or manufacturing faults that are considered to constitute a warranty claim occur during the warranty period, Hama GmbH & Co KG will resolve the fault free of charge by repairing the goods or replacing them a product that Hama GmbH & Co KG deems to be equivalent.
The warranty we provide is in addition to the statutory rights to a warranty free of charge, for which any claim must be directed to the seller of your product.
Likewise, any statutory rights you have to a warranty free of charge from us remain unaffected by this warranty promise.
In the event of a warranty claim, you must send the Hama product along with proof of purchase in original form with postage and freight costs paid to the following address:
Hama GmbH & Co KG
Dresdner Str. 9
86653 Monheim
Germany
We would ask you to appreciate that Hama GmbH & Co KG may reject the
warranty claim if the proof of purchase is not provided, because this proof is used to calculate the warranty period.
The warranty is valid only for non-commercial users of our product.
In the case of defects caused by force or improper use, as well as in the case of repairs or actions by the purchasing party or third parties without the prior written consent of Hama GmbH & Co KG, the warranty becomes null and void.
Damages that are not covered by this warranty may be fixed against the cost of the repairs, either by the dealer that sold you the product or by Hama GmbH & Co KG.
Hama GmbH & Co KG, Dresdner Str. 9, 86653 Monheim, 2022
FAQs
-
Do I need a separate spirit level to install this?
The spirit level included is only intended as a rough guide. We recommend checking the correct alignment using a calibrated spirit level from a specialist store.
-
How do I adjust the tilt angle?
To adjust the tilt angle, open the fastening screws at the side, set the required tilt, and then secure the screws in place again.
-
How can I correct the position of the TV after installation?
To compensate any slightly skewed TV, loosen the screw connections on the longitudinal holes on the side nearest the wall. If you have enough play on the wall-side mounting element, move it into a horizontal position with the aid of an external spirit level. Then re-tighten the screw connections.
-
Can I also attach my curved TV to the wall bracket?
Yes, the spacers included allow even TVs with a curved back to be hung effortlessly
-
How do I change the position of the flat screen TV using the rotation setting?
Loosen the corresponding fastening screws and set the desired rotation. Then tighten the screw connection only so far that you can still adjust the TV by hand - i.e. do not tighten it completely. After releasing, the flat screen TV should then remain in the position you selected. This ensures that you can make minor changes to the position of the TV set at any time without using tools.
