Hama TV-WB, tilt, 203 cm, 80"
Full flexibility in hotels, meetings and at trade fairs: whether it be a hotel bed or a counter, with this fully mobile wall bracket, you'll always be in the front row. Ideal for flat-screen TVs with a screen diagonal of 94 to 203 cm (37" to 80")
Is suitable for
Destaques
Garantia de 10 anos
Garantia de 10 anos: uma promessa de garantia em termos de durabilidade que vai muito além da garantia prevista por lei
Qualidade comprovada
Jogue pelo seguro com a nossa segurança comprovada: exigentes testes de carga, estabilidade e funcionamento garantem elevados padrões de qualidade
Fully mobile TV bracket
Para o melhor ângulo de visão: Este suporte para televisor adapta-se às suas necessidades individuais – é articulável, inclinável e extraível -, para o melhor Home Entertainment

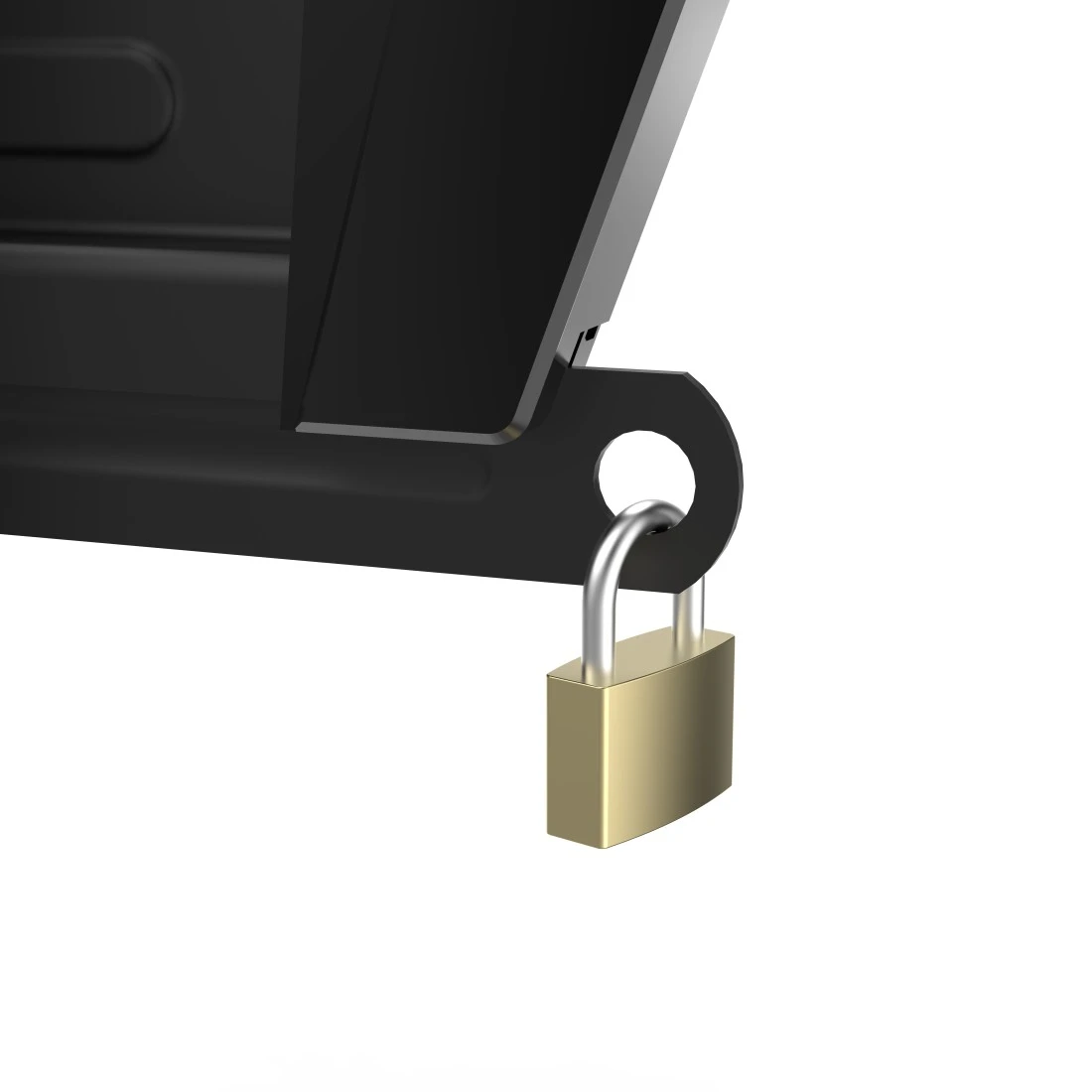

Special theft protection device
O dispositivo de proteção contra roubo permite-lhe proteger o televisor com um cadeado e bloquear o sistema de desbloqueio
Simple unlocking
Basta um puxão no cordão de desbloqueio para o mecanismo se soltar e permitir que o televisor seja removido
Integrated cable management
Para uma casa arrumada: A organização dos cabos permite conduzi-los, de forma arrumada, por detrás do televisor, o que evita um novelo de cabos e poupa espaço; a passagem de cabos protege adicionalmente contra a quebra do cabo por meio de alívio de tensão
Rebalancing
Se, depois de montado, o suporte de parede para TV ficar ligeiramente inclinado, a posição da TV pode ser posteriormente corrigida alguns graus para ficar na horizontal
Sistema Easy Fix
Sempre posicionado de forma fácil e rápida: Com apenas um movimento, pode ajustar o televisor espontaneamente como pretender – sem qualquer ferramenta
Includes mounting material
Tudo incluído: Arregace as mangas com os diversos acessórios de montagem, incl. buchas Fischer de alta qualidade
FSC
Certificação FSC: o papel, o cartão e o papelão da nossa embalagem são provenientes de práticas sustentáveis de gestão florestal – desta forma, fazemos uma utilização eficiente dos recursos tendo a madeira como matéria-prima
Sem plástico
Embalagem sem culpa: a nossa embalagem é 100 % isenta de plástico – deste modo, reduzimos o lixo plástico
-
Ficha Técnica
Design (Colour, Pattern, Motif, Series) Cor Black Variante Black Quality Qualidade Professional Propriedades Físicas Carga Máx. 40 kg Hole Size Attachment up to M8 Tilt +/- 5 / 10 ° Material Steel Maximum swivel range 181 ° Modelo TV number of joints 3 Projection maximum 55,1 cm Projection minimum 8,1 cm Rotation 8 ° Dimensões & Peso Altura Exterior 44 cm Dimensões do Monitor 94 cm (37"), 97 cm (38"), 99 cm (39"), 103 cm (40"), 104 cm (41"), 108 cm (42"), 110 cm (43"), 112 cm (44"), 115 cm (45"), 118 cm (46"), 120 cm (47"), 122 cm (48"), 123 cm (49"), 128 cm (50"), 129 cm (51"), 133 cm (52"), 137 cm (54"), 141 cm (55"), 142 cm (56"), 146 cm (57"), 148 cm (58"), 152 cm (60"), 156 cm (61"), 162 cm (63"), 163 cm (64"), 166 cm (65"), 179 cm (70"), 181 cm (71"), 191 cm (75"), 195 cm (77"), 198 cm (78"), 200 cm (79"), 203 cm (80") Largura Exterior 78,51 cm Mounting Plate (Length) 24,6 cm Mounting Plate (Width) 48,5 cm VESA 300 x 200, 300 x 300, 300 x 400, 400 x 200, 400 x 300, 400 x 400, 600 x 400 VESA (from-to) 300x200 – 600x400 Field of Application Apropriado para TV Área de Aplicação Public Recommended Maximum Screen Size 203 cm (80") Recommended Minimum Screen Size 94 cm (37") Tamanho de Ecrã Recomendado 94 - 203 cm (37" - 80") Variante Inclinable/Pivoted -
Mais informação de produto
- Full flexibility in hotels, meetings and at trade fairs: whether it be a hotel bed or a counter, with this fully mobile wall bracket, you'll always be in the front row. Ideal for flat-screen TVs with a screen diagonal of 94 to 203 cm (37" to 80")
- Tested according to the criteria of a recognised testing body for use in public places, such as in hotels, conference rooms, restaurants or bars
- TV wall bracket especially suited for flat-screen televisions, allows optimal positioning of the flat-screen TV in any room, ideal for open-plan living rooms
- By removing the padlock and metal cover, the holder becomes accessible again and the TV can be removed
- Up to -5/+10° continuous tilt
- Swivel range on 3 hinges: up to 180°
- Supports all VESA standards up to 600 x 400
- With small spirit level for easy and quick installation
- Design developed in Germany
-
A embalagem contém
- 1 TV wall bracket
- Installation materials incl. Fischer plugs
- 1 spirit level
- 1 installation instructions
-
Apoio ao Cliente
Padlock not included in the extent of delivery.
Please note that the padlock's shackle diameter must be 4 mm or less.
The bracket can only be unlocked and the TV removed if no padlock is attached.
In addition to the various installation accessories delivered in the package, we also recommend the following tools: drill, pencil, screwdriver, power screwdriver, measuring tape, spirit level.
To be able to use the full range of motion, route the cable to the fully extended TV wall bracket and ensure that there is sufficient room for the cable to move. -
Manufacturer information
Hama GmbH & Co KG, 86652, Monheim, https://hama.com
-
Garantia
Hama GmbH & Co KG provides the following manufacturer’s warranty on the workmanship and materials used for the product 00220863 TV-WB, tilt, 203 cm, 80": 10 Anos de Garantia
This warranty begins on the date of purchase of this Hama product and is valid throughout the EU.
If material or manufacturing faults that are considered to constitute a warranty claim occur during the warranty period, Hama GmbH & Co KG will resolve the fault free of charge by repairing the goods or replacing them a product that Hama GmbH & Co KG deems to be equivalent.
The warranty we provide is in addition to the statutory rights to a warranty free of charge, for which any claim must be directed to the seller of your product.
Likewise, any statutory rights you have to a warranty free of charge from us remain unaffected by this warranty promise.
In the event of a warranty claim, you must send the Hama product along with proof of purchase in original form with postage and freight costs paid to the following address:
Hama GmbH & Co KG
Dresdner Str. 9
86653 Monheim
Germany
We would ask you to appreciate that Hama GmbH & Co KG may reject the
warranty claim if the proof of purchase is not provided, because this proof is used to calculate the warranty period.
The warranty is valid only for non-commercial users of our product.
In the case of defects caused by force or improper use, as well as in the case of repairs or actions by the purchasing party or third parties without the prior written consent of Hama GmbH & Co KG, the warranty becomes null and void.
Damages that are not covered by this warranty may be fixed against the cost of the repairs, either by the dealer that sold you the product or by Hama GmbH & Co KG.
Hama GmbH & Co KG, Dresdner Str. 9, 86653 Monheim, 2022
FAQs
-
Can I also attach my curved TV to the wall bracket?
Yes, the spacers included allow even TVs with a curved back to be hung effortlessly
