Suporte para Tecto

Hama TV Ceiling Bracket, 117 cm, 20 kg

00220876

Full flexibility in the home cinema: whether it be a sofa corner, bed or lounge chair, with this fully mobile wall TV ceiling bracket, film and series addicts will always be sitting in the VIP lounge. Ideal for flat-screen TVs with a screen diagonal of 48 to 117 cm (19" to 46")

79,00   EUR
Qualidade de acordo com os padrões alemães
Qualidade de acordo com os padrões alemães
Da primeira amostra à produção em série: Os nossos produtos passam por controlos de qualidade rigorosos e abrangentes, geridos e implementados na Alemanha. Desta forma, garantimos o cumprimento de todas as especificações, diretivas e normas e satisfazemos as mais elevadas exigências.

Destaques

Garantia de 10 anos

Garantia de 10 anos: uma promessa de garantia em termos de durabilidade que vai muito além da garantia prevista por lei

Qualidade comprovada

Jogue pelo seguro com a nossa segurança comprovada: exigentes testes de carga, estabilidade e funcionamento garantem elevados padrões de qualidade

100°-swivel joint

Sempre o ângulo de visão certo: a articulação rotativa num ângulo de 100º permite que o televisor seja rodado para a posição pretendida

Regulação contínua em altura

Desfrute da melhor vista: o suporte de teto para o televisor pode ser continuamente regulado em altura, para montar a sua TV à altura perfeita – para uma autêntica sensação de cinema em casa

Sistema Easy Fix

Sempre posicionado de forma fácil e rápida: Com apenas um movimento, pode ajustar o televisor espontaneamente como pretender – sem qualquer ferramenta

Instalação que permite poupar espaço

Integração economizadora de espaço no ambiente de sua casa: com o estável suporte de parede universal para TV para a montagem em tetos planos e inclinados, o televisor pode ser colocado em qualquer parte da sala, de forma suspensa e flexível

Includes mounting material

Tudo incluído: Arregace as mangas com os diversos acessórios de montagem, incl. buchas Fischer de alta qualidade

FSC

Certificação FSC: o papel, o cartão e o papelão da nossa embalagem são provenientes de práticas sustentáveis de gestão florestal – desta forma, fazemos uma utilização eficiente dos recursos tendo a madeira como matéria-prima

Sem plástico

Embalagem sem culpa: a nossa embalagem é 100 % isenta de plástico – deste modo, reduzimos o lixo plástico

Ficha Técnica
Design (Colour, Pattern, Motif, Series)
Cor Black
Variante Black
Propriedades Físicas
Carga Máx. 20 kg
Hole Size Attachment up to M8
Material Steel
Max. Ceiling distance to vertical strut 47.1 cm
Maximum ceiling distance 69,4 cm
Maximum swivel range 100 °
Min. Ceiling Distance to vertical Strut 26,6 cm
Minimum ceiling distance 60 cm
Modelo TV
Tilt Angle -90 °
Dimensões & Peso
Dimensões do Monitor 48 cm (19")/ 50,8 cm (20")/ 54.61 cm (21.5")/ 56 cm (22")/ 58 cm (23")/ 61 cm (24")/ 66 cm (26")/ 69 cm (27")/ 71 cm (28")/ 74 cm (29")/ 76 cm (30")/ 79 cm (31")/ 81 cm (32")/ 84 cm (33")/ 86 cm (34")/ 89 cm (35")/ 91 cm (36")/ 94 cm (37")/ 97 cm (38")/ 99 cm (39")/ 103 cm (40")/ 104 cm (41")/ 108 cm (42")/ 110 cm (43")/ 112 cm (44")/ 115 cm (45")/ 118 cm (46")
Mounting Plate (Length) 16,5 cm
Mounting Plate (Width) 10,5 cm
Tamanho Middle
VESA 75 x 75, 100 x 100, 200 x 100, 200 x 200
VESA (from-to) 75x75 - 200x200
Field of Application
Recommended Maximum Screen Size 118 cm (46")
Recommended Minimum Screen Size 48 cm (19")
Tamanho de Ecrã Recomendado 48 - 117 cm (19" - 46")
Variante Agile/Pivoted
Mais informação de produto
  • Full flexibility in the home cinema: whether it be a sofa corner, bed or lounge chair, with this fully mobile wall TV ceiling bracket, film and series addicts will always be sitting in the VIP lounge. Ideal for flat-screen TVs with a screen diagonal of 48 to 117 cm (19" to 46")
  • Can be continuously extended / retracted on the ceiling
  • Up to -90° continuous tilt
  • Height-adjustable from 26.6 cm - 47.1 cm
  • Supports all VESA standards up to 200 x 200

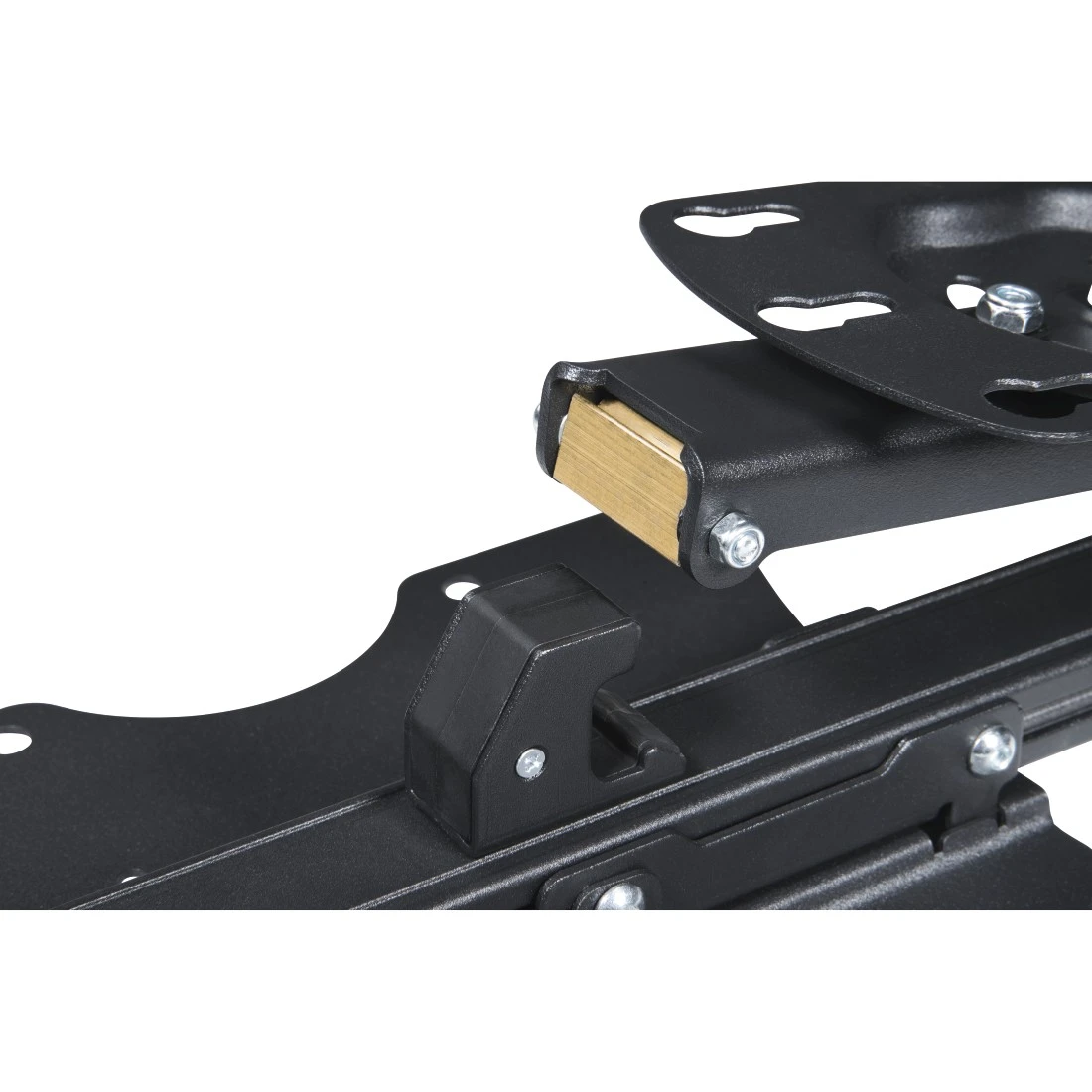

  • With locking system for maximum safety, preventing accidental unhooking
  • Position the TV perfectly out of reach of children and pets
  • Ideal for flexibly attaching flat-screen TVs to the ceiling at home in the living room or bedroom above the bed, but also in the office, in meeting rooms, lobbies, waiting rooms, restaurants and bars
A embalagem contém
  • 1 TV ceiling bracket
  • Installation material incl. Fischer plugs
  • 1 installation instructions
Apoio ao Cliente

The joint, which can swivel around 100°, can only be used with ceiling mounting.

In addition to the various installation accessories delivered in the package, we also recommend the following tools: drill, pencil, screwdriver, power screwdriver, measuring tape, open-end spanner, spirit level.

Manufacturer information Hama GmbH & Co KG, 86652, Monheim, https://hama.com Garantia
Hama GmbH & Co KG provides the following manufacturer’s warranty on the workmanship and materials used for the product 00220876 TV Ceiling Bracket, 117 cm, 20 kg: 10 Anos de Garantia
This warranty begins on the date of purchase of this Hama product and is valid throughout the EU.
If material or manufacturing faults that are considered to constitute a warranty claim occur during the warranty period, Hama GmbH & Co KG will resolve the fault free of charge by repairing the goods or replacing them a product that Hama GmbH & Co KG deems to be equivalent.
The warranty we provide is in addition to the statutory rights to a warranty free of charge, for which any claim must be directed to the seller of your product.
Likewise, any statutory rights you have to a warranty free of charge from us remain unaffected by this warranty promise.

In the event of a warranty claim, you must send the Hama product along with proof of purchase in original form with postage and freight costs paid to the following address:

Hama GmbH & Co KG
Dresdner Str. 9
86653 Monheim
Germany

We would ask you to appreciate that Hama GmbH & Co KG may reject the
warranty claim if the proof of purchase is not provided, because this proof is used to calculate the warranty period.
The warranty is valid only for non-commercial users of our product.

In the case of defects caused by force or improper use, as well as in the case of repairs or actions by the purchasing party or third parties without the prior written consent of Hama GmbH & Co KG, the warranty becomes null and void.

Damages that are not covered by this warranty may be fixed against the cost of the repairs, either by the dealer that sold you the product or by Hama GmbH & Co KG.


Hama GmbH & Co KG, Dresdner Str. 9, 86653 Monheim, 2022

Downloads

Manuais de instruções

Download

Guia de Início Rápido

English
Download

Folha de segurança

multilingual
Download

Technical Drawing

multilingual
Download
