Hama TV WB, 165 cm (65"), 35 kg
Full flexibility in the home cinema: whether it be your favourite chair or the sofa corner, with this fully mobile wall bracket, film and series addicts will always be sitting in the VIP lounge. Ideal for flat-screen TVs with a screen diagonal of 81 to 165 cm (32" to 65")
Is suitable for
Destaques
Garantia de 10 anos
Garantia de 10 anos: uma promessa de garantia em termos de durabilidade que vai muito além da garantia prevista por lei
Qualidade comprovada
Jogue pelo seguro com a nossa segurança comprovada: exigentes testes de carga, estabilidade e funcionamento garantem elevados padrões de qualidade

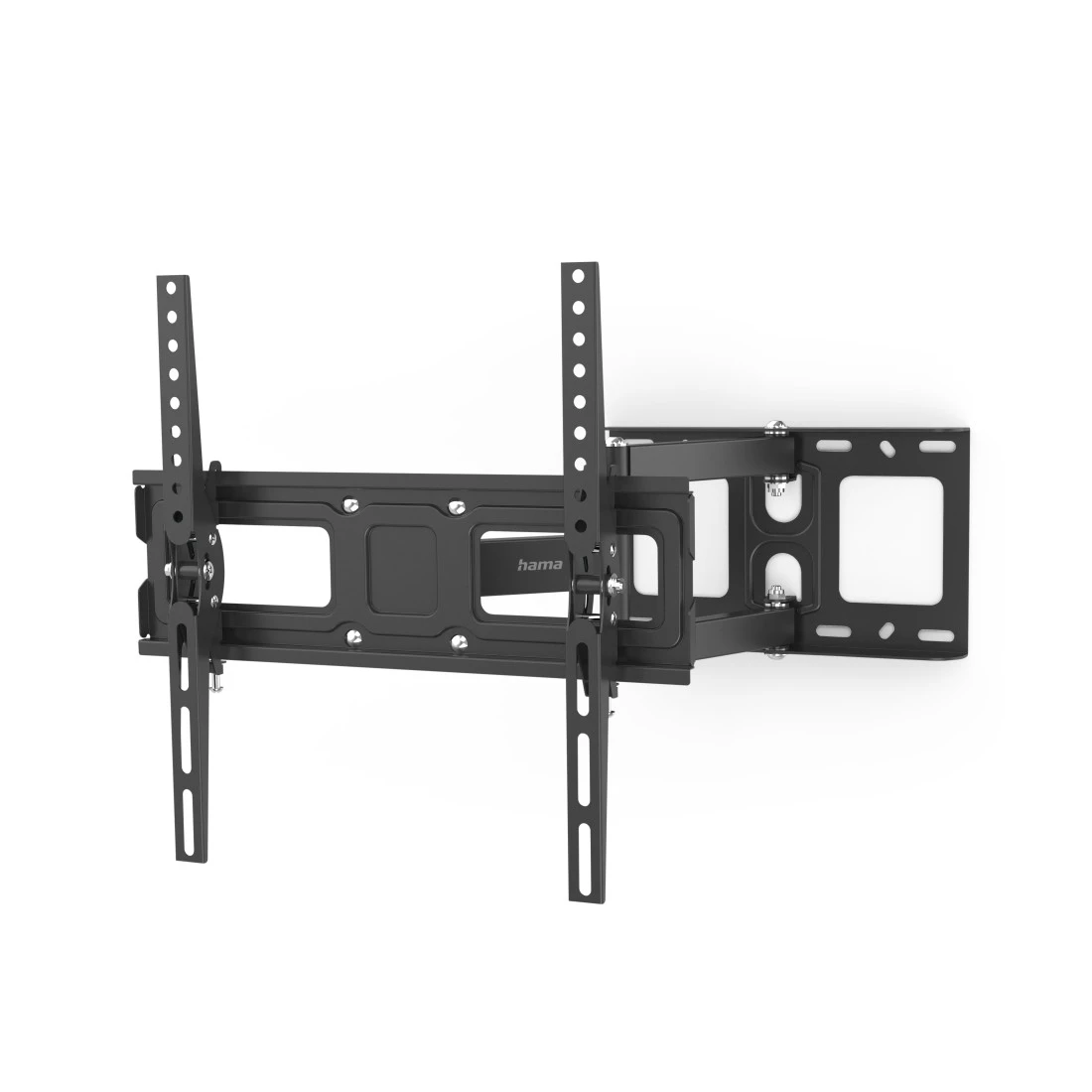

Fully mobile TV bracket
Para o melhor ângulo de visão: Este suporte para televisor adapta-se às suas necessidades individuais – é articulável, inclinável e extraível -, para o melhor Home Entertainment
Sistema Easy Fix
Sempre posicionado de forma fácil e rápida: Com apenas um movimento, pode ajustar o televisor espontaneamente como pretender – sem qualquer ferramenta
Rebalancing
Se, depois de montado, o suporte de parede para TV ficar ligeiramente inclinado, a posição da TV pode ser posteriormente corrigida alguns graus para ficar na horizontal
Drilling template for marking the drill holes
A matriz de perfuração permite assinalar com facilidade os orifícios a serem abertos, sem ter de encostar o suporte à parede
Includes mounting material
Tudo incluído: Arregace as mangas com os diversos acessórios de montagem, incl. buchas Fischer de alta qualidade
FSC
Certificação FSC: o papel, o cartão e o papelão da nossa embalagem são provenientes de práticas sustentáveis de gestão florestal – desta forma, fazemos uma utilização eficiente dos recursos tendo a madeira como matéria-prima
Sem plástico
Embalagem sem culpa: a nossa embalagem é 100 % isenta de plástico – deste modo, reduzimos o lixo plástico
| Cor | Black |
| Variante | Black |
| Carga Máx. | 35 kg |
| Hole Size Attachment | up to M8 |
| Tilt +/- | 15 / 15 ° |
| Material | Steel |
| Maximum swivel range | 181 ° |
| Modelo | TV |
| number of joints | 3 |

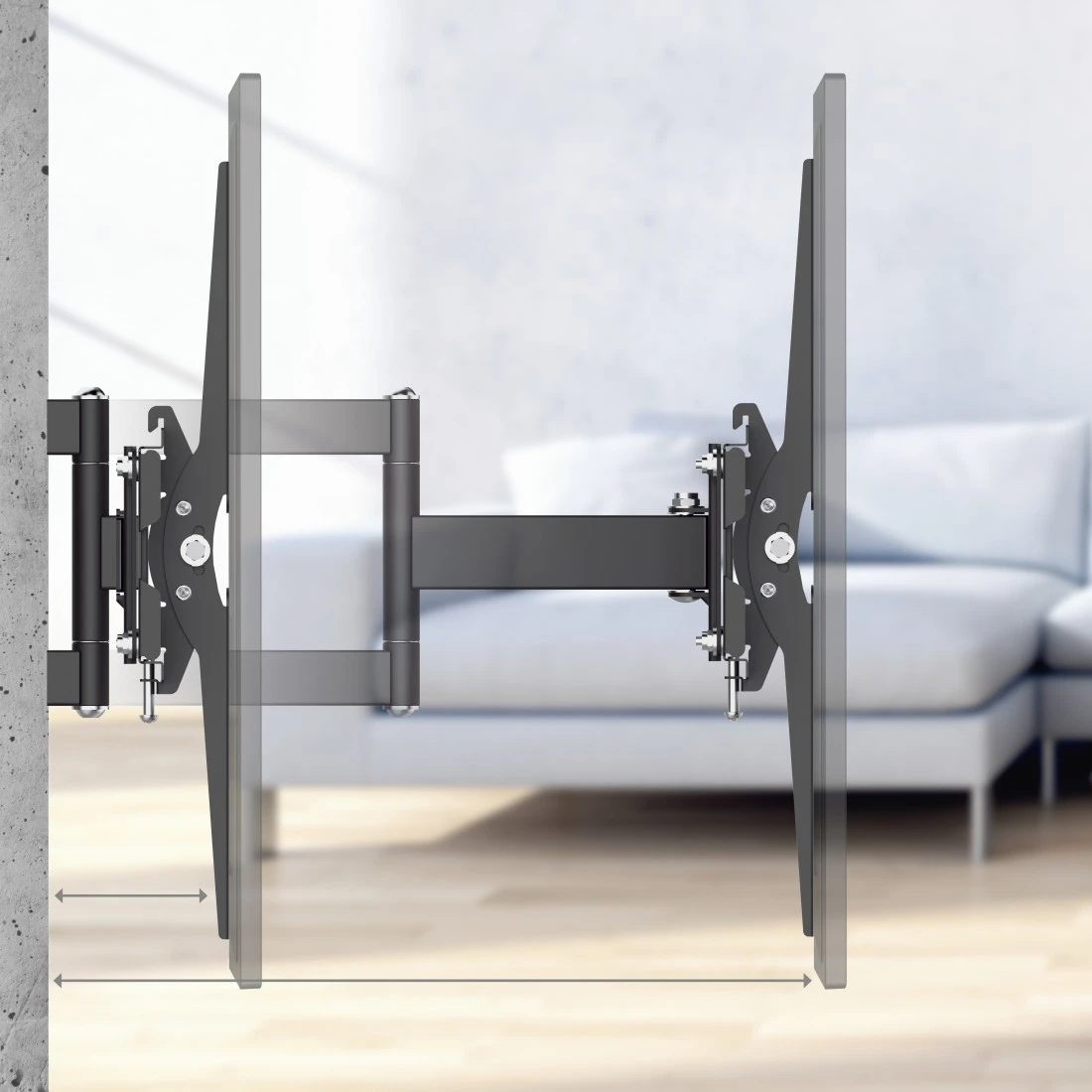

| Projection maximum | 42.5 cm |
| Projection minimum | 9 cm |
| Rotation | 6 ° |
| Special Feature | Cablemanager/Drilling template/Spirit level |
| Altura Exterior | 41,8 cm |
| Dimensões do Monitor | 81 cm (32"), 84 cm (33"), 86 cm (34"), 89 cm (35"), 91 cm (36"), 94 cm (37"), 97 cm (38"), 99 cm (39"), 103 cm (40"), 104 cm (41"), 108 cm (42"), 110 cm (43"), 112 cm (44"), 115 cm (45"), 118 cm (46"), 120 cm (47"), 122 cm (48"), 123 cm (49"), 128 cm (50"), 129 cm (51"), 133 cm (52"), 137 cm (54"), 141 cm (55"), 142 cm (56"), 148 cm (58"), 152 cm (60"), 163 cm (64"), 166 cm (65") |
| Largura Exterior | 43 cm |
| Mounting Plate (Length) | 17,8 cm |
| Mounting Plate (Width) | 29,7 cm |
| VESA | 100 x 100, 100 x 150, 100 x 200, 200 x 100, 200 x 200, 200 x 300, 200 x 400, 300 x 100, 300 x 200, 300 x 300, 300 x 400, 400 x 200, 400 x 300, 400 x 400 |
| VESA (from-to) | 100x100 - 400x400 |
| Apropriado para | TV |
| Área de Aplicação | Private |
| Recommended Maximum Screen Size | 166 cm (65") |
| Recommended Minimum Screen Size | 81 cm (32") |
| Tamanho de Ecrã Recomendado | 81 - 165 cm (32"- 65") |
| Variante | Inclinable/Pivoted |
- Full flexibility in the home cinema: whether it be your favourite chair or the sofa corner, with this fully mobile wall bracket, film and series addicts will always be sitting in the VIP lounge. Ideal for flat-screen TVs with a screen diagonal of 81 to 165 cm (32" to 65")
- TV wall bracket especially suited for flat-screen televisions, allows optimal positioning of the flat-screen TV in any room, ideal for open-plan living rooms
- Simple installation in just 3 steps

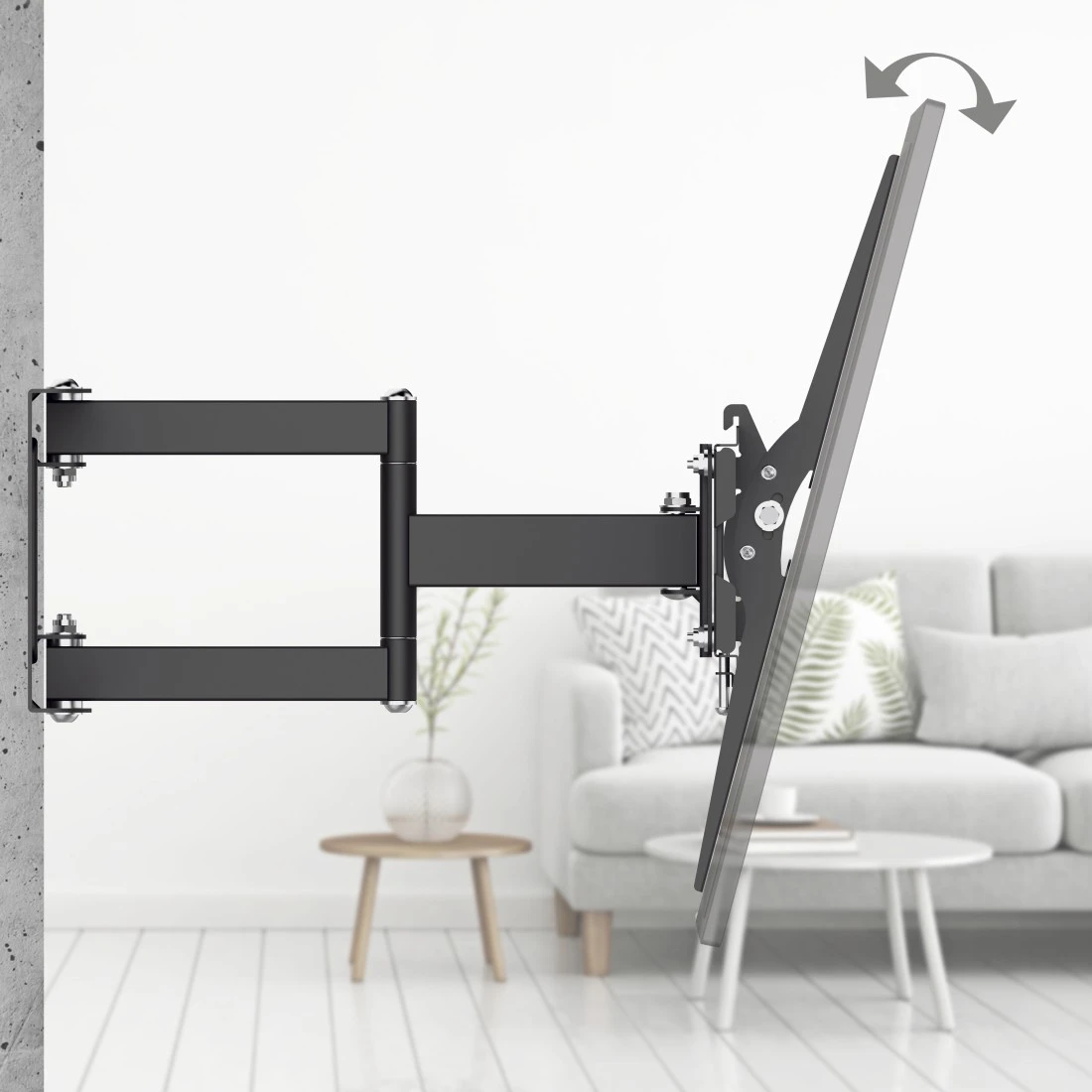

- Up to +/-15° continuous tilt
- Swivel range on 3 hinges: up to 180°
- Supports all VESA standards up to 400 x 400
- Supplied hook and eye cable tie ensures everything remains tidy and provides suitable strain relief
- With small spirit level for easy and quick installation
- Design developed in Germany
- 1 TV wall bracket
- Installation material incl. Fischer plugs
- 1 spirit level
- 1 drilling template
- 1 installation instructions
In addition to the various installation accessories delivered in the package, we also recommend the following tools: drill, pencil, screwdriver, power screwdriver, measuring tape, open-end spanner, spirit level.
To be able to use the full range of motion, route the cable to the fully extended TV wall bracket and ensure that there is sufficient room for the cable to move.
This warranty begins on the date of purchase of this Hama product and is valid throughout the EU.
If material or manufacturing faults that are considered to constitute a warranty claim occur during the warranty period, Hama GmbH & Co KG will resolve the fault free of charge by repairing the goods or replacing them a product that Hama GmbH & Co KG deems to be equivalent.
The warranty we provide is in addition to the statutory rights to a warranty free of charge, for which any claim must be directed to the seller of your product.
Likewise, any statutory rights you have to a warranty free of charge from us remain unaffected by this warranty promise.
In the event of a warranty claim, you must send the Hama product along with proof of purchase in original form with postage and freight costs paid to the following address:
Hama GmbH & Co KG
Dresdner Str. 9
86653 Monheim
Germany
We would ask you to appreciate that Hama GmbH & Co KG may reject the
warranty claim if the proof of purchase is not provided, because this proof is used to calculate the warranty period.
The warranty is valid only for non-commercial users of our product.
In the case of defects caused by force or improper use, as well as in the case of repairs or actions by the purchasing party or third parties without the prior written consent of Hama GmbH & Co KG, the warranty becomes null and void.
Damages that are not covered by this warranty may be fixed against the cost of the repairs, either by the dealer that sold you the product or by Hama GmbH & Co KG.
Hama GmbH & Co KG, Dresdner Str. 9, 86653 Monheim, 2022
